ECM8 Electrochemical Multiplexer
Great for scaling up constant-potential microbial fuel cell studies
Rating: 5.0
Organization: Yale University
Application Area: Maintain potential for studying multiple microbial fuel cells in parallel
"Maintaining constant potential is critical for growing microbial communities on electrode surfaces. With its eight channels, the ECM8 Electrochemical Multiplexer has allowed us to us to scale up our experiments..."
2 Reviews | Read More Reviews
Product Details
The ECM8™ is an affordable way to expand the throughput of your lab. Experiments can be sequentially multiplexed on up to 8 channels. The ECM8™ is ideal for corrosion inhibitor testing, EIS evaluation of paints/coatings, monitoring of field probes for corrosion tests, and chemical sensor development.
Key features include:
- 8-channel for sequential measurements
- DC and AC experiments
- Industry standard multiplexed experiments
Overview

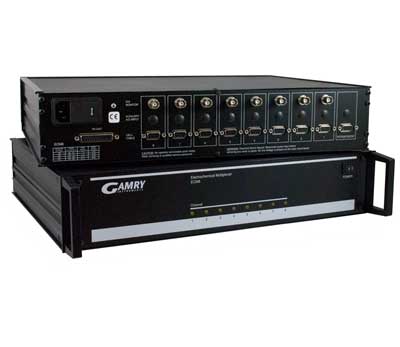

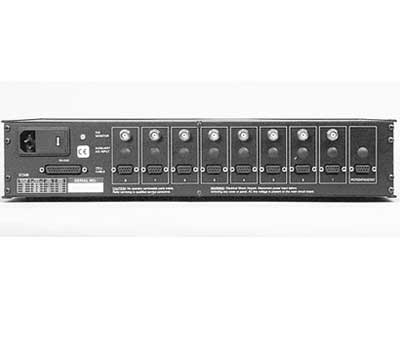

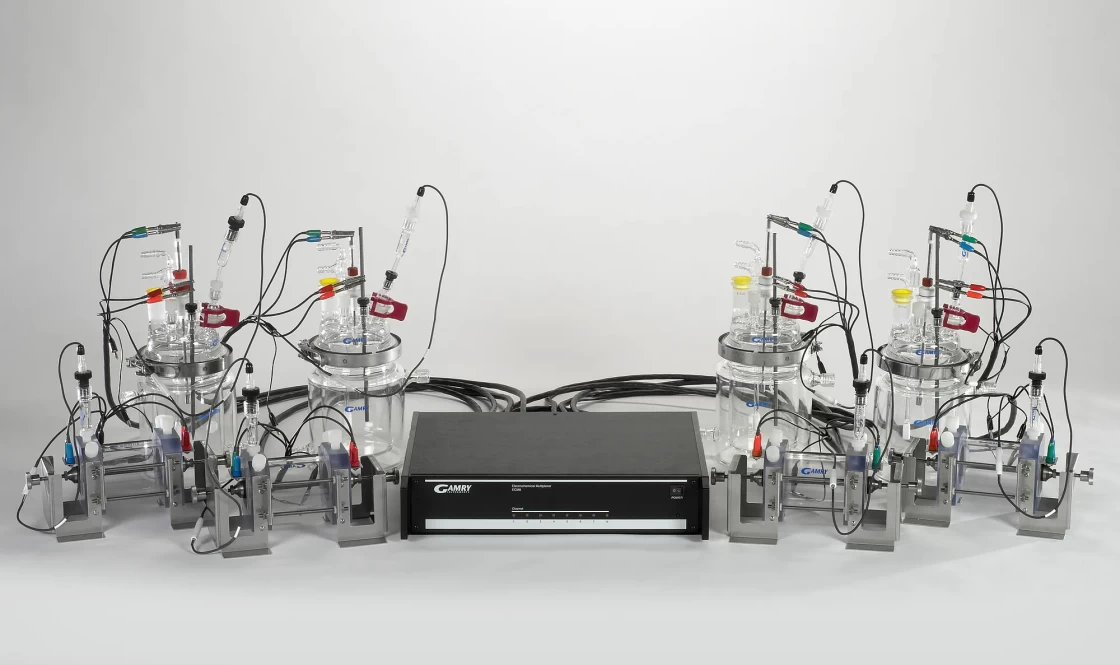

The ECM8™ Electrochemical Multiplexer partners with a Gamry Potentiostat to convert a single potentiostat into a powerful instrument suitable for sequential multichannel operations. It allows you to sequentially take measurements on up to eight electrochemical cells. The ECM8™ Multiplexer is great for automating repetitive experiments, and for increasing throughput on long-term experiments where data can be taken periodically. Each of the eight Multiplexer channels also incorporates a "local" potentiostat to polarize the sample when not participating in the electrochemical experiment. The ECM8™ is not usable for simultaneous multichannel experiments across multiple cells. For simultaneous multichannel experiments see the multichannel potentiostat.
*Note that EIS through the multiplexer is limited to 100 kHz
Applications
- Corrosion Inhibitor Testing
- Paint/Coating Evaluation
- Galvanic Corrosion
- Corrosion Monitoring
- Chemical Sensor Development
Standard Features
- 8-channel for sequential measurements.
- DC and AC experiments.
- Includes industry standard multiplexed experiments.
- 8 Local Potentiostats – Inactive channels can be set to open, short, or polarized.
- Warranty – Protected by 2-year factory service warranty.
Specifications
EIS (Providing Potentiostat is EIS Capable) |
||
| EIS (through the multiplexer) | 10 uHz to 100 kHz | |
CHANNEL CHARACTERISTICS |
||
| Modes | Active, Open, Shorted, Local | |
| Channel Switching Time | <4 msec Excluding communication time |
|
| Cell Current | 1 Amp max Switched | |
| Input Voltage (operating) | ±12 Volts vs. Chassis (except Counter) | |
| Input Voltage (no damage) | ±24 Volts vs. Chassis | |
| Counter Electrode Voltage | ±120 Volts vs. Chassis | |
CHANNEL ISOLATION |
||
| Current Leakage | <2 nA max to any electrode in active channel from any source | |
| Impedance | >500 MΩ <20 pF | |
POWER INPUT |
||
| Input Voltage Ranges | 100,120,220,240 V rms | |
| Allowed Voltage Variation | ±10% on each range | |
| Power | <50 VA | |
LOCAL POTENTIOSTAT
|
||
| Compliance - Current | ±20 mA - 500Ω load | |
| Compliance - Voltage | ±11 Volts - 1kΩ load | |
| Applied E Range | ±5.12 Volts Working vs. Reference | |
| Resolution | >80 dB (10 kHz) >60 dB (1 MHz) |
|
| Zero Offset Error | <4 mV typical 0 Volts output <10 mV max 10 kΩ load |
|
| Gain Error | <0.2% - 10 kΩ load | |
| Reference Input Current | <50 pA | |
| Note: Applied voltage error is the sum of zero offset and gain errors. | ||
RS-232 COMMUNICATIONS |
||
| Baud Rates | 300, 600, 1200, 2400, 4800, 9600, 19200 Set via internal DIP switches |
|
| Default | 9600 - Factory setting | |
| Handshake | Hardware via RTS and CTS | |
ENVIRONMENTAL |
||
| Operating Temperature | 0 to 45° C | |
| Humidity | 0 to 90% - Noncondensing | |
Manuals
Accessories
ECM8 120V Multiplexer for Reference 600+ w/Cell Cables - #992-00130
ECM8 240V Multiplexer for Reference 600+ w/Cell Cables - #992-00131
ECM8 120V Multiplexer for Interface 1000/Reference 600 w/Cell Cables - #992-00108
ECM8 240V Multiplexer for Interface 1000/Reference 600 w/Cell Cables - #992-00109
ECM8 120V Multiplexer for Reference 3000 w/Cell Cables - #992-00110
ECM8 240V Multiplexer for Reference 3000 w/Cell Cables - #992-00111
Auxiliary A/D Input Option for ECM8 Multiplexer - #992-00181
