Reference 30k Booster

High-current booster
Cited in the literature See research citations →
Power and speed

Features:

  • 2, 3, and 4 electrode measurements
  • ± 30 Amps current
  • +20 V, -2.5 V compliance/applied voltage
What it does
  • Extends a Reference 3020 or 3020AE to ±30 A
  • Rapid, distortion-free pulsing for charge and discharge
  • Superior low-impedance EIS — 200 nΩ shorted-lead curve
  • EIS to 300 kHz with a 20 V/µs slew rate
  • Compliance from +20 V through zero to −2.5 V for complete discharge or hydrogen crossover studies
  • 16 kg bench unit that pairs with a Reference 3020/3020AE host instrument
For applications including
Battery TestingFuel CellsElectrolyzersSupercapacitors
Request a quote
±30 A
Maximum current
Raises a Reference 3020 to ±30 A
+20 / −2.5 V
Max applied potential
Discharge through zero volts
300 kHz
EIS upper limit
Impedance below 100 µΩ
20 V/µs
Slew rate
550 kHz unity-gain bandwidth
16 kg
Weight
37 × 23 × 44 cm
// System highlights

Published EIS accuracy, not claimed accuracy

Overview

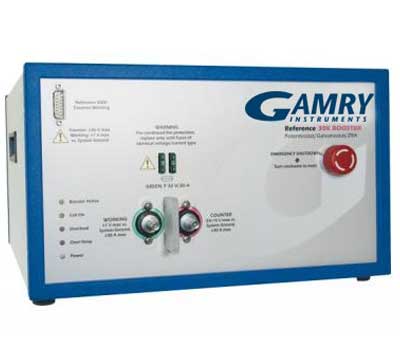

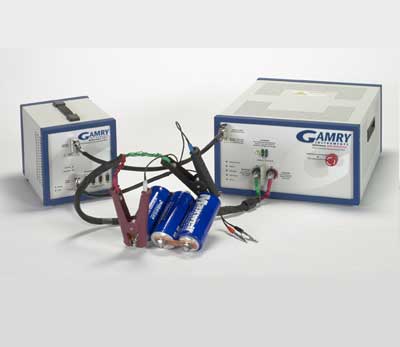

The Reference 30k Booster for the Reference 3020 Potentiostat is an external hardware option which increases the current limit of the Reference 3020/3020AE to ± 30 Amps.  It features a class-leading bandwidth of 300 kHz, allowing for high-frequency EIS measurements and rapid pulsing experiments.  The Reference 3020 Potentiostat plus the Reference 30k Booster is an ideal system for the evaluation of new technologies for batteries, fuel cells, supercapacitors, electrolyzers, and critical mineral recovery studies. The compliance limits of the Reference 30k  pass through zero volts for supercapacitor work and hydrogen crossover studies. This system can accurately measure impedance values below 100 μΩ.

The Reference 30k is not only limited to high current applications but has been uniquely designed to allow pass-through measurements. This means that you can use the 3 A, 300 mA, and 30 mA ranges of the Reference 3020/3020AE while still connected to the booster. Our systems are designed to pick the most appropriate range, giving you the highest resolution possible.

Electrochemical Impedance Spectroscopy

The Reference 30K Booster is fully capable of performing electrochemical impedance spectroscopy.  The shorted lead curve is a measure of the limits of the instrument.

Rapid Pulsing

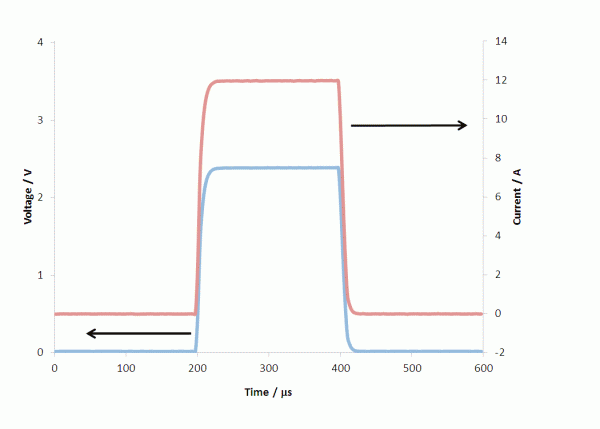

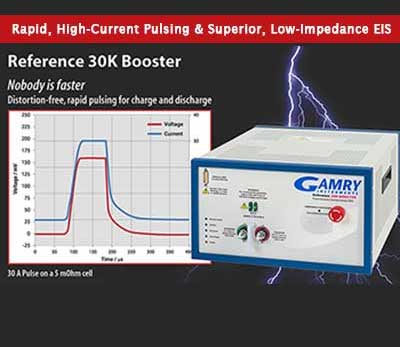

The booster's impressive 300 kHz bandwidth also allows it to do rapid pulsing experiments for techniques for cell characterization.  As mentioned above, the system's response (including electrochemical cell) is dependent upon the instrument's internal resistances as well as the resistance of your cell.  Below is an example of a 200 μs 12 A pulse on a 200 mΩ cell.

Rapid pulsing

Accuracy contour plot · voltage ≤ 10 mV rms · 0.9 m cell cable
// Research citations

Cited in the literature

Independent research citations for this instrument are provided by Bioz and appear here once the widget loads.

Citation data provided by Bioz.
// Overview

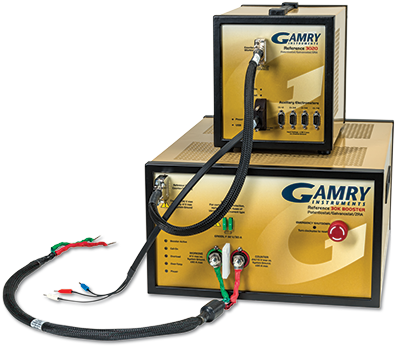

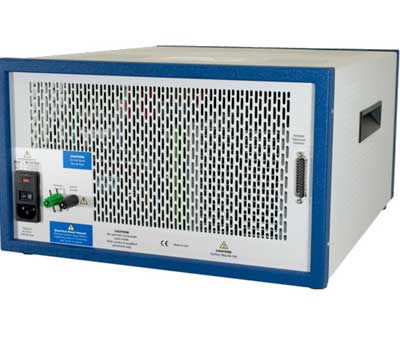

The Reference 30k™ Booster is ideal for higher current applications such as large format batteries, fuel cells, electrolyzers/electrolysis and critical mineral recovery studies. Ground isolation allows for operation in parallel with a power supply or electronic load or grounded cells.  The Reference 30K Booster attaches to a Reference 3020 Potentiostat or Reference 3020 Auxiliary Electrometer to bring the current limit up to ± 30 Amps with voltage/compliance limits of +20 and -2.5 V.  This high current device features impressive bandwidth allowing EIS measurements up to 300 kHz.

More details

More details

  • Reference 3020 software functionality
  • 2, 3, and 4 electrode measurements
  • ± 30 Amps current
  • +20 V, -2.5 V compliance/applied voltage
  • 3 Control Modes
    • Potentiostatic, Galvanostatic and Zero Resistance Ammeter.
  • Electrical Isolation
    • Floating instrument: use with operating fuel cells, grounded electrodes, and grounded cells such as autoclaves.
  • Separated Voltage and Current Cables
    • Always accurate EIS measurements.
  • Warranty
    • Protected by 2-year factory service warranty.

Safety

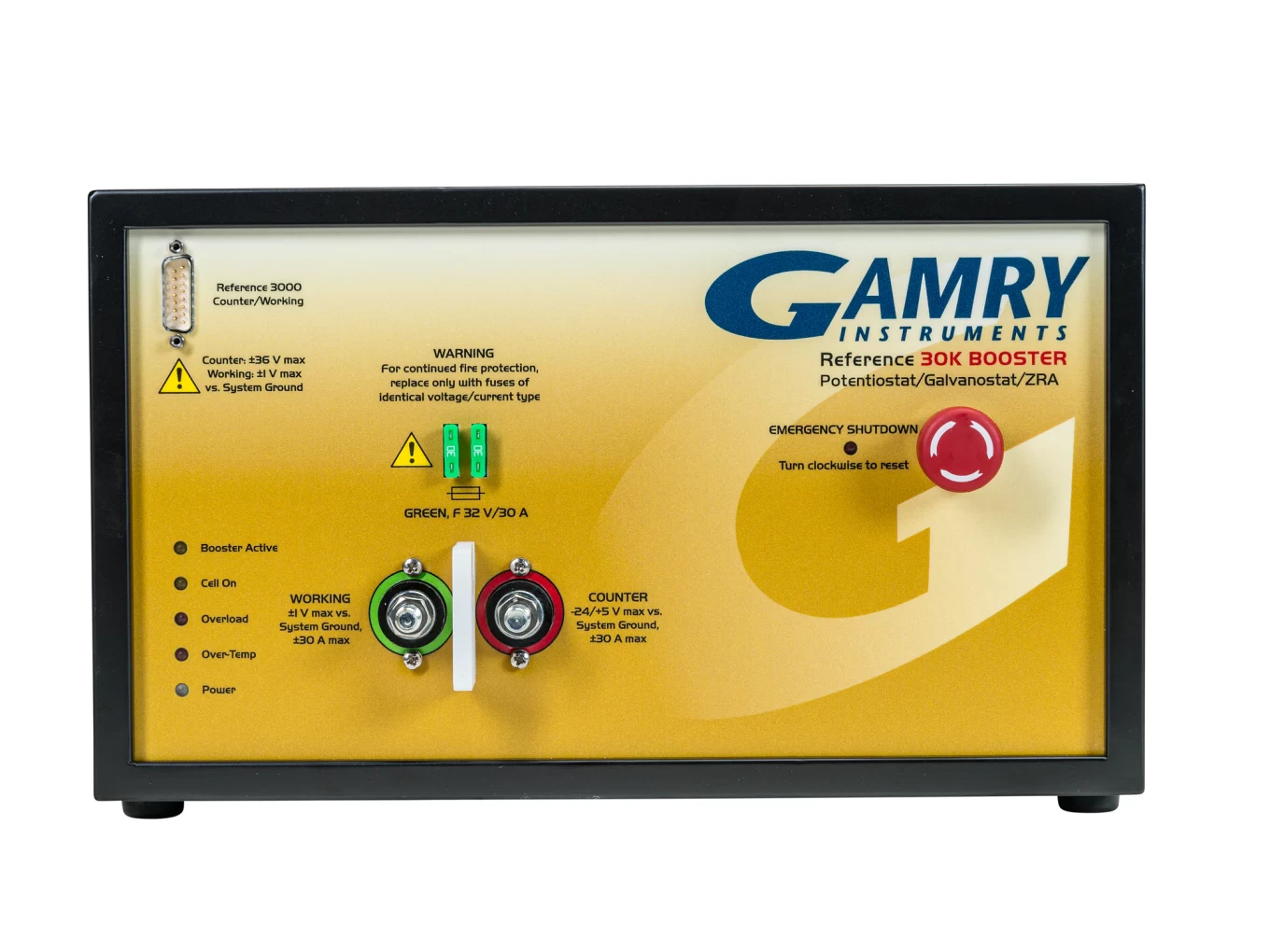

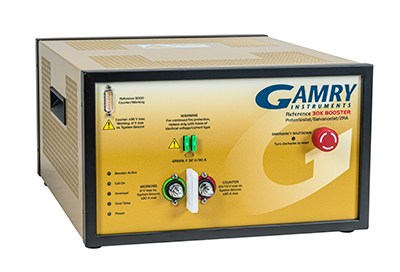

At these currents, safety is a must and we have incorporated several features to prevent damage to both the instrument and the user.  The system is protected against self-inflicted damage to the circuits, contains an emergency shut-off button, has a protective ground terminal and provides an insulating barricade to prevent accidental shorting across the terminals.

// Specifications

The complete technical detail

System
Dimensions37 cm W x 23 cm H x 44 cm D14.5 in. W x 9 in. H x 17.5 in. D
Weight16 kg (35 pounds)
Operation
ModesPotentiostatic, Galvanostatic, ZRA
Agency ApprovalCE
DC Characteristics
Compliance Voltage+20 V, -2.5 V
Output Current±30 A
Accuracy±0.3%
Power Dissipation600 W to + rail750 W to - rail
AC Characteristics
Slew Rate20 V/μS (maximum)
Unity Gain BW (typical)550 kHz (minimum)
// Resources

Documentation

Documentation
Reference 30k Booster Operators ManualPDF
