Which Potentiostat/Galvanostat/ZRA (Zero Resistance Ammeter) is Right for your Application?

Whether you're looking at a single-channel potentiostat or multichannel potentiostats, Gamry has a system for you.

Gamry's two families of potentiostats are the high-performance Reference line and the more value-oriented Interface line.

Try our helpful way of accurately finding which potentiostats are right for your research.

Filters

Application

EIS Capable?

Expected Currents

Expected Potentials

Data Acquisition Rate

Reference 600+

Reference 600+

Potentiostat / Galvanostat / ZRA (Zero Resistance Ammeter)

  • Ultra low currents
  • Ideal for Corrosion and Coatings
  • Fast CV
  • High speed pulsing and sampling
  • 11 V, 600 mA
  • EIS to 5 MHz

Reference 600+

Applied Voltage ±11 V
Current Ranges 11 (60 pA - 600 mA)
EIS 10 μHz - 5 MHz
Compliance Voltage ±22 V
Maximum Sample Rate 3.333 μs/pt
Maximum CV @ 5mV Step Size 1500 V/s
Weight 3 kg
Dimensions 9 (W) x 19 (H) x 27 (D) cm
Quick Specs Product Details »
Reference 3000

Reference 3000

Potentiostat / Galvanostat / ZRA (Zero Resistance Ammeter)

  • Perfect for high and low current applications
  • 32 V / 1.5 A and 15 V / 3 A
  • EIS to 1 MHz
  • Boostable to 20A

Reference 3000

Applied Voltage  ±32V (1.5A),  ±15V (3A)
Current Ranges 11 (300 pA – 3 A)
EIS 10 μHz - 1 MHz
Compliance Voltage ±32 V
Maximum Sample Rate 3.333 μs/pt
Maximum CV @ 5mV Step Size 1500 V/s
Weight 7 kg
Dimensions 20 (W) x 23 (H) x 30 (D) cm
Quick Specs Product Details »

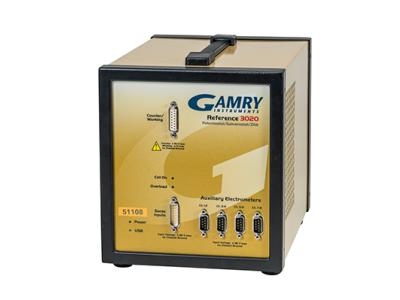

Reference 3000 w/ AE

Reference 3000 w/ AE

Potentiostat / Galvanostat / ZRA (Zero Resistance Ammeter)

  • Perfect for high and low current applications
  • Boostable to 20A
  • Additional voltage measurements for stacks and ancillary devices
  • 32 V / 1.5 A and 15 V / 3 A
  • EIS to 1 MHz

Reference 3000AE

Applied Voltage  ±32V (1.5A),  ±15V (3A)
Current Ranges 11 (300 pA – 3 A)
EIS 10 μHz - 1 MHz
Compliance Voltage ±32 V
Maximum Sample Rate 3.333 μs/pt
Maximum CV @ 5mV Step Size 1500 V/s
Weight 7 kg
Dimensions 20 (W) x 23 (H) x 30 (D) cm
Quick Specs Product Details »

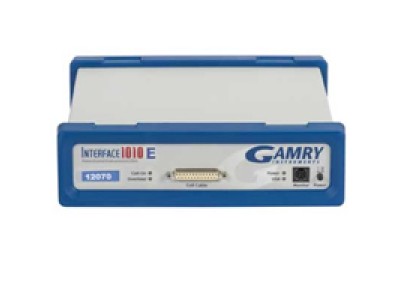

Interface 1010E

Interface 1010E

Potentiostat / Galvanostat / ZRA (Zero Resistance Ammeter)

  • General purpose
  • Great for most applications except insulating coatings
  • 12 V, 1 A
  • EIS to 2 MHz

Interface 1010E

Applied Voltage ±12 V
Current Ranges 9 (10 nA - 1 A)
EIS 10 μHz - 2 MHz
Compliance Voltage ±20 V (@ 1A)
Maximum Sample Rate 10 us/pt
Maximum CV 10 mV step Size 1000 V/s
Weight 2.4 kg
Dimensions 24 (W) x 6 (H) x 27 (D) cm
Quick Specs Product Details »

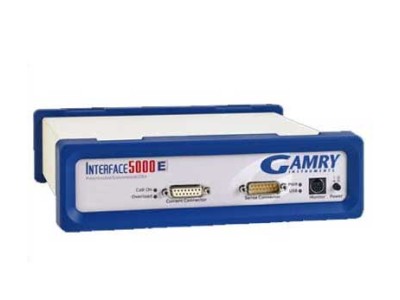

Interface 5000E

Interface 5000E

Potentiostat / Galvanostat

  • High current testing of single cell energy devices
  • Second voltage measurement for simultaneous anode and cathode measurements
  • Temperature monitoring
  • 6 V, 5 A
  • EIS included

Interface 5000E

Applied Voltage ±6 V
Current Ranges 6 (50 μA - 5 A)
EIS 10 μHz - 1 MHz
Compliance Voltage ±8.5 / ±2.5 V
Maximum Sample Rate 10 us/pt
Maximum CV 10 mV step Size 1000 V/s
Weight 2.5 kg
Dimensions 24 (W) x 6 (H) x 27 (D) cm
Quick Specs Product Details »
Reference 3000 (Boosted)

Reference 3000 (Boosted)

Great high current applications
Use Reference 30K Booster

  • +20 / 2.5 V
  • EIS to 300 kHz

30k Booster

Output Current ±30 A
Compliance Voltage +20 V, -2.5 V
EIS up to 300 kHz
Slew Rate 20 V/μS (maximum)
Accuracy ±0.2% of scale ±0.2% of reading
Weight 16 kg (35 pounds)
Dimensions

37 cm W x 23 cm H x 44 cm D 14.5 in. W x 9 in. H x 17.5 in. D

Quick Specs Product Details »

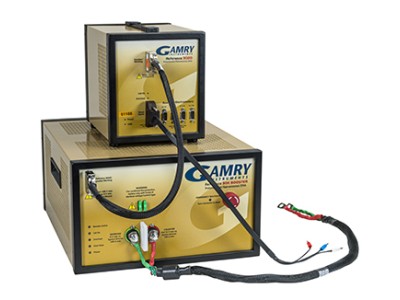

Reference 3000 w/ AE (Boosted)

Reference 3000 w/ AE (Boosted)

Great for high current applications, auxiliary voltage inputs
Use Reference 30K Booster

  • +20 V / 2.5 V
  • EIS to 300 kHz (100 kHz when using AE)

30k Booster

Output Current ±30 A
Compliance Voltage +20 V, -2.5 V
EIS up to 300 kHz
Slew Rate 20 V/μS (maximum)
Accuracy ±0.2% of scale ±0.2% of reading
Weight 16 kg (35 pounds)
Dimensions

37 cm W x 23 cm H x 44 cm D 14.5 in. W x 9 in. H x 17.5 in. D

Quick Specs Product Details »

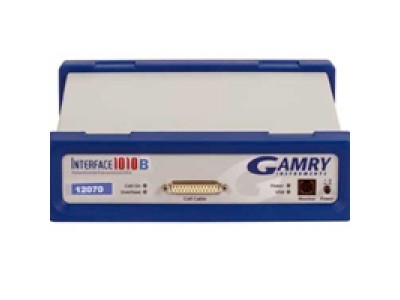

Interface 1010B

Interface 1010B

Potentiostat / Galvanostat / ZRA (Zero Resistance Ammeter)

  • The perfect introductory instrument for physical and analytical electrochemistry applications
  • 12 V, 1 A

Interface 1010B

Applied Voltage ±12 V
Current Ranges 9 (10 nA - 1 A)
EIS 10 µHz - 20 kHz
Compliance Voltage ±20 V (@ 1A)
Maximum Sample Rate 10 us/pt
Maximum CV 10 mV step Size 1000 V/s
Weight 2.4 kg
Dimensions 24 (W) x 6 (H) x 27 (D) cm
Quick Specs Product Details »
Interface 5000P

Interface 5000P

  • Great introductory 5A instrument designed for testing of batteries, supercapacitors and fuel cells.
  • 6 V, 5 A
  • Dual voltage measurements
  • Temperature monitoring
  • EIS included (20 kHz (gstat mode only)

Interface 5000P

Applied Voltage ±6 V
Current Ranges 6 (50 μA - 5 A)
EIS 10 μHz - 20 kHz
Compliance Voltage ±8.5 / ±2.5 V
Maximum Sample Rate 10 us/pt
Maximum CV 10 mV step Size 1000 V/s
Weight 2.5 kg
Dimensions 24 (W) x 6 (H) x 27 (D) cm
Quick Specs Product Details »
EIS Box

EIS Box

  • Make impedance measurements on up to eight batteries
  • Isolated from ground and capable of EIS from 100 kHz down to 10 µHz
  • EIS on up to eight cells
  • Ethernet based
  • Up to 6V per channel

EIS Box

Max Input Voltage Max ±6.0 V (EIS Box 5000) // Max ±12 V (EIS Box 1010)
EIS 10 uHz to 100 kHz
Compliance Voltage Min. ±6.5 V (EIS Box 5000) // Min. ±22 V (EIS Box 1010)
Maximum Input Voltage Max ±6.0 V (EIS Box 5000) // Max ±12 V (EIS Box 1010)
Weight Approximately 25 lb (10 kg)
Dimensions 5.25”x18.875”x18.875” (13.3 cm H x 41.5 cm W x 45.7cm D)
Quick Specs Product Details »
Interface 1010T

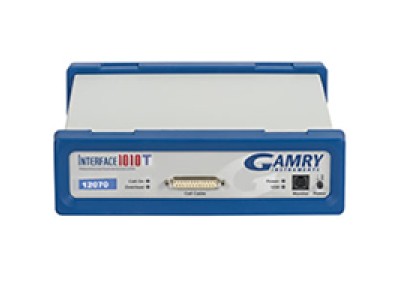

Interface 1010T

  • Entry-level potentiostat
  • The perfect instrument for a teaching lab
  • EIS Capable

Interface 1010T

Applied Voltage ±12 V
Current Ranges 6 (1 uA - 100 mA)
EIS 10 µHz - 20 kHz
Compliance Voltage ±20 V (@ 1A)
Maximum Sample Rate 10 us/pt
Maximum CV 10 mV step Size 1000 V/s
Weight 2.4 kg
Dimensions 24 (W) x 6 (H) x 27 (D) cm
Quick Specs Product Details »

Sorry, there are no products that match your criteria. Please contact us to discuss more options.
