The 600+  is a high-performance potentiostat/galvanostat/ZRA particularly suitable for applications in physical electrochemistry, sensors, coatings, and corrosion.

Key features of the 600+ include:

  • Designed for fast, low-current measurements
  • Maximum Applied Potential - ±11 V
  • EIS - 10 μHz - 5 MHz

For techniques including:

  • Physical Electrochemistry
  • Pulse Voltammetry
  • Electrochemical Energy

Overview

The Reference 600 is a high-performance, research-grade potentiostat/galvanostat/ZRA designed for fast, low-current measurements.  It does well for a variety of applications such as physical electrochemistry (especially at microelectrodes), fast cyclic voltammetry, electrochemical corrosion, electrochemical noise measurements, paints and coatings, and sensors.

It has a number of auxiliary input and outputs designed to help you interface or control ancillary equipment such as a rotating disc electrode. It also has a thermocouple for temperature measurements.

he Reference 600+ is a high-performance, research-grade potentiostat/galvanostat/ZRA designed for fast, low-current measurements.  It does well for a variety of applications such as physical electrochemistry (especially at microelectrodes), fast cyclic voltammetry, electrochemical corrosion, electrochemical noise measurements, paints and coatings, and sensors.

It has a number of auxiliary input and outputs designed to help you interface or control ancillary equipment such as a rotating disc electrode. It also has a thermocouple input for temperature measurements.

Electrochemical Impedance Spectroscopy

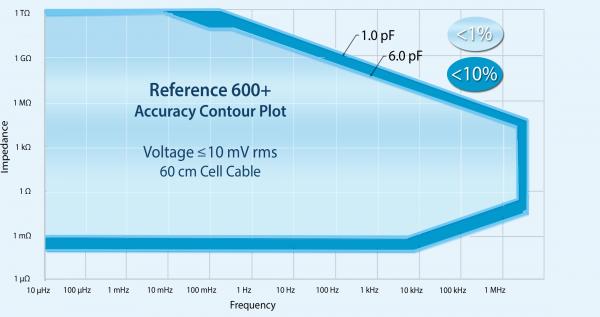

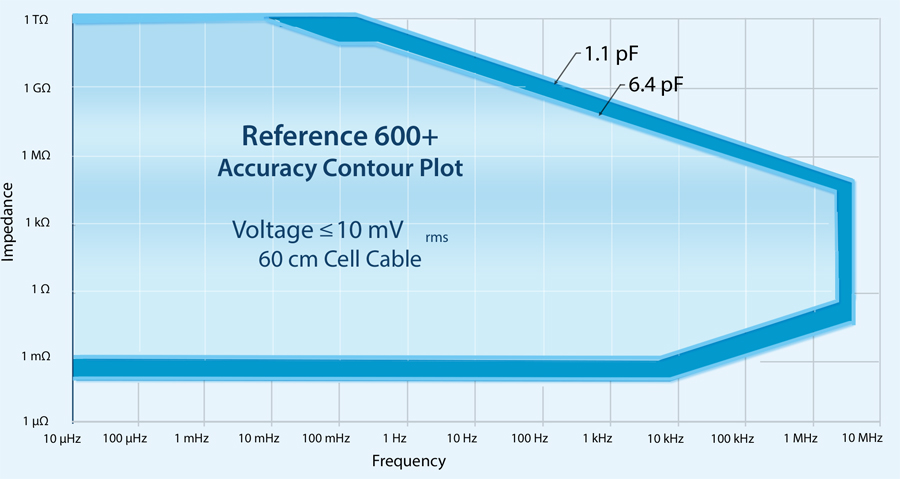

The Reference 600+ comes fully equipped to perform electrochemical impedance spectroscopy.  The Accuracy Contour Plot shown below provides a detailed look at the performance you can expect from your instrument in real-world situations. The results include the cell cable.

Reference600 Plus ACP limits

Options

  • Extended Cable Lengths
    • Extended length cell cables (1.5 m, 3 m, 10 m) are also available for your convenience.

More details

Below are additional details regarding the capabilities of the Reference 600+ potentiostat. Each bullet point contains a list of the type of techniques available for the instrument to run.

  • Physical Electrochemistry  - Techniques such as cyclic voltammetry, chronoamperometry, and chronopotentiometry and derivatives of these techniques.
  • Pulse Voltammetry Techniques such as pulse voltammetry, square wave voltammetry, and associated stripping techniques such as anodic stripping voltammetry.
  • DC Corrosion Run standard DC corrosion tests such as polarization resistance, potentiodynamic, cyclic polarization, and galvanic corrosion in addition to a number of others.
  • Electrochemical Energy Test single-cells and stacks of various batteries, fuel cells or supercapacitors. Includes charge, discharge, cyclic charge-discharge techniques, potentiostatic, galvanostatic, self-discharge, leakage rate, and read cell voltage.
  • Electrochemical Signal Analyzer -  Designed specifically for the acquisition and analysis of time-dependent electrochemical noise signals. Cell voltage and current are continuously monitored at rates from 0.1 Hz to 1 kHz. A full featured set of analysis tools provides powerful analysis features such as statistical analysis, detrending, impedance spectra, and histogram analysis.
  • Electrochemical Frequency Modulation A non-destructive corrosion rate measurement technique. It allows for measurement of the corrosion rate without prior knowledge of the Tafel constants. In addition, the technique determines the Tafel constants and provides 2 internal validity checks.
  • Critical Pitting Temperature controls a Gamry Potentiostat, TDC4 Temperature Controller, and associated accessories to automatically measure the Critical Pitting Temperature of a material.
  • Electrochemical Noise A more general form of electrochemical noise testing. It is also an ECM8 Multiplexer compatible electrochemical noise software package.
  • Electrochemical Impedance Spectroscopy includes experimental scripts for potentiostatic, galvanostatic and hybrid impedance spectroscopy experiments in addition to single frequency techniques like Mott-Schottky. We also have our unique power-leveling multisine technique that improves signal-to-noise across the spectrum. On the analysis side, it provides tools for fitting spectra to equivalent circuit models, Kramers-Kronig transform for data validation and a graphical model editor. Our software even includes a script for EIS simulation.
  • eChemDC Toolkit contains all of the capabilities of the eChemBasic and further extends these capabilities by adding advanced signals and data acquisition modes to simplify implementing experiments like cyclic voltammetry, pulse voltammetry, and dynamic DC corrosion techniques. Also includes more advanced stop tests, particularly useful in fast experiments.
  • eChemAC - Includes full capabilities of eChemDC Toolkit plus allows electrochemical impedance spectroscopy (EIS) and EFM experiments.

Other features

  • 2, 3, and 4 electrode measurements
  • Electrical Isolation
    • Floating instrument: use with autoclaves, mechanical stress apparatus, or pipeline probes.
  • Built-In EIS
    • On-board DDS to perform EIS from 10 µHz to 5 MHz.
  • DSP (Digital Signal Processing) Mode
    • Oversamples for improved signal-to-noise and accurate capacitance measurements.
  • Current Interrupt and Positive Feedback iR Compensation
    • Gamry potentiostats and their controlling software use control loop algorithms to accurately measure and correct for uncompensated resistance.
  • Auxiliary I/O
    • Control additional equipment via additional I/O interfaces: external signal input, analog voltage output, analog current output, auxiliary A/D input, and digital I/O connector.
  • Warranty
    • Protected by 2-year factory service warranty.



Specifications

SYSTEM

Potentiostat Yes
Galvanostat Yes
Zero Resistance Ammeter Yes
Floating (Isolated from Earth Ground) Yes
Cell Connections 2, 3, 4, 5, or 6 (includes Aux channel)
Maximum Current ±600 mA
Current Ranges 11 (60 pA - 600 mA)
Current Ranges
(including internal gain)
13
Minimum Current Resolution 20 aA
Maximum Applied Potential ±11 V
Rise Time <250 ns
Minimum Time Base 3.333 μs
Noise and Ripple <2 μV rms
Weight 3 kg
Dimensions 9 (W) x 19 (H) x 27 (D) cm


CONTROL AMPLIFIER

Compliance Voltage ±22 V
Output Current >±600 mA
Speed Settings 5


EIS MEASUREMENT

EIS 10 μHz - 5 MHz
EIS Accuracy See Accuracy
Contour Plot
Voltage AC Amplitude 3 V maximum
Current AC Amplitude 600 mA maximum


ELECTROMETER

Input Impedance >1014 Ω || <0.2 pF
Input Current (typical) <10 pA
Bandwidth >15 MHz at -3 dB
CMRR 65 dB (1 MHz)


POTENTIAL

Applied Accuracy    ±1 mV ±0.2% of setting
Applied Resolution 200 μV, 50 μV, 12.5 μV/bit
Measured Accuracy ±1 mV ±0.2% of reading
Measured Resolution 1 μV, 10 μV, 100 μV, 400 μV/bit


CURRENT

Applied/Measured Accuracy    ±10 pA ± 0.05% of range ±0.2% of value (600 mA - 6 nA)
or 0.75% of value (600 pA)
or 1.5% of value (60 pA)
Applied/Measured  Resolution 0.003% full-scale/bit
Bandwidth >10 MHz (600 mA – 600 μA)
>0.15 MHz (6 μA))
