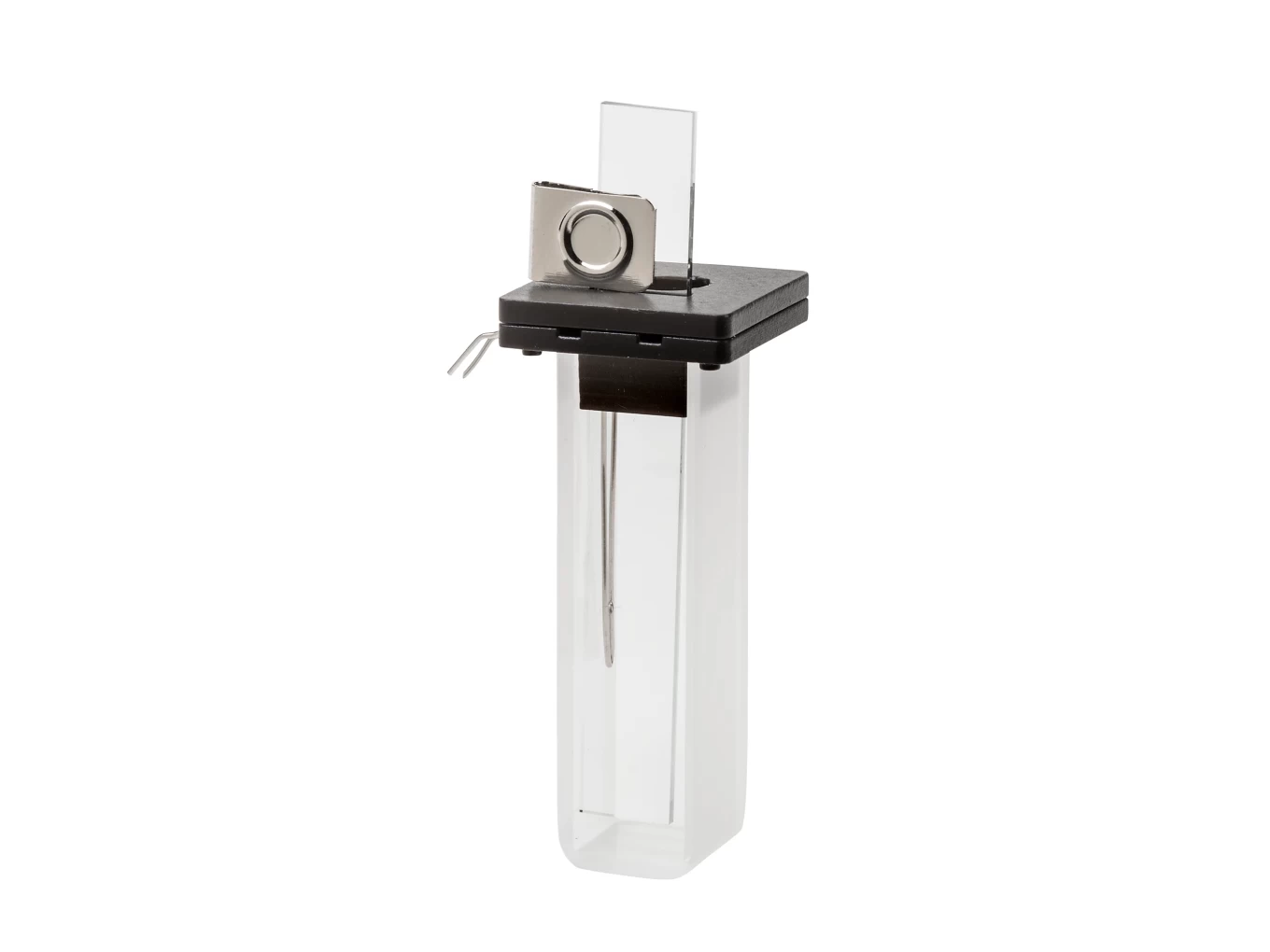

Raman Cuvette Cell Kit
Raman cuvette cell kit
The Raman ITO cuvette kit — one of two spectroelectrochemical cell kits for the Raman spectrometers.
What it does
- ITO cuvette kit, one of two Raman spectroelectrochemical set-ups
- Standard quartz cuvette, 10 mm path length
- Platinum wire counter electrode, ITO cuvette lid set and two ITO electrodes

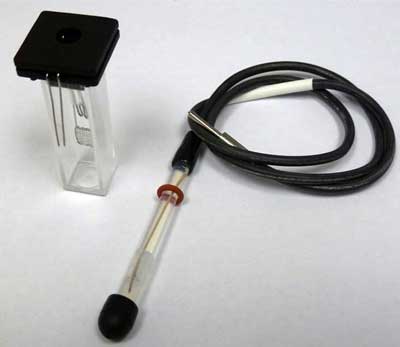

- Reference electrode ordered separately
// Research citations
Cited in the literature
Independent research citations for this instrument are provided by Bioz and appear here once the widget loads.
Citation data provided by Bioz.
// Overview

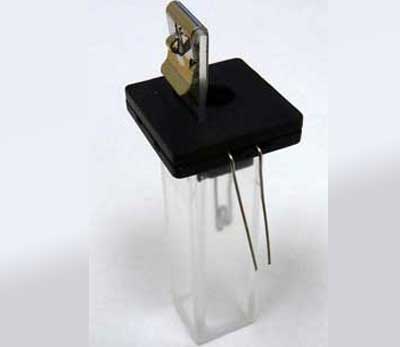

The Raman ITO Cuvette Cell Kit is one of 2 available Spectroelectrochemical Cell Kits for the Raman Spectrometers.
Contains:
• Standard Quartz Cuvette - 10 mm pathlength
• Platinum Wire Counter electrode
• ITO cuvette lid set
• 2 ea. ITO electrodes
Kit

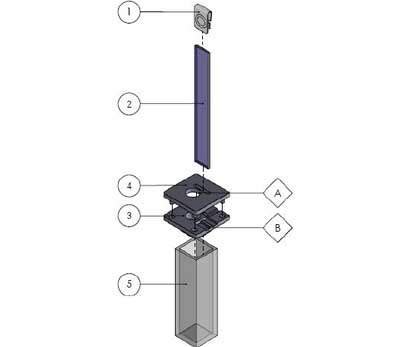

The ITO Cuvette Cell Kit includes:
- Standard quartz cuvette, 10 mm pathlength
- Pt wire counter electrode

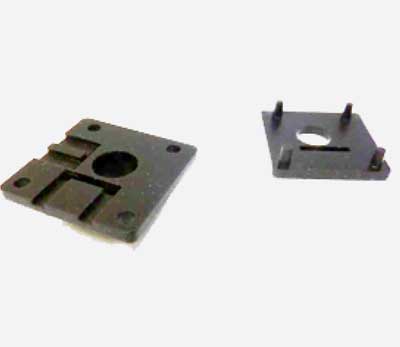

- ITO cuvette lid set
- ITO substrate set (sheet resistance 10-15 ohms, polished float glass, 8x60 mm, thickness 1.1 mm), including two connectors
Accessories
Raman ITO Cuvette Cell Kit Part #990-00335
Available accessories include:

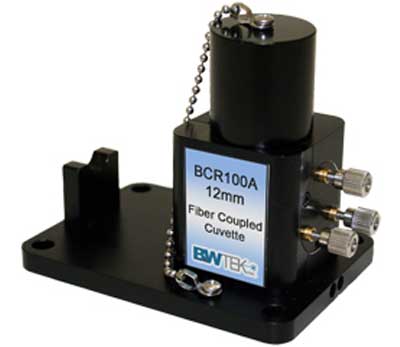

- 972-00010: Raman Cuvette Holder (BCR100A-12mm from B&W Tek)
- Can be combined with Raman ITO Cuvette Cell Kit (990-00335) and Raman spectrometer (952-00026 or 952-00027)
