Dye Solar Cell Testing
Learn the recombination and charge-extraction characteristics of a dye-sensitised solar cell, driven by any colour of LED.
- Intensity-modulated photocurrent and photovoltage spectroscopy for dye-sensitised solar cells
- Two potentiostats: one drives the LED, the second characterises the cell
- Acquisition is synced between them, so phase between drive and response is preserved
- Extracts recombination and charge-extraction parameters
- Backed by four application notes, including measuring the optical power of your LED
Cited in the literature
Independent research citations for this instrument are provided by Bioz and appear here once the widget loads.
IMPS / IMVS
Intensity Modulated Photocurrent Spectroscopy and Intensity Modulated Photovoltage Spectroscopy are techniques that can be used to characterize Dye-Sensitized Solar Cells (DSSCs). Our system utilizes two Gamry potentiostats to fully characterize DSSCs, allowing you to extract recombination and charge-extraction parameters.
Read our application notes Dye Solar Cells Part 1, Dye Solar Cells Part 2 Impedance Measurements, Dye solar Cells Part 3 -IMPS/IMVS Measurements and Measuring the Optical Power of Your LED.
Overview

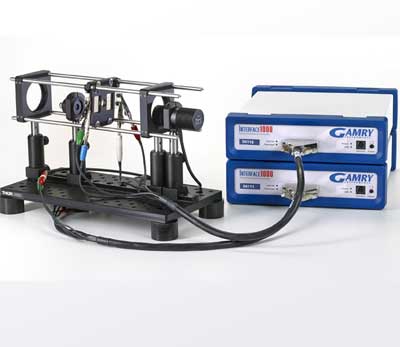

One potentiostat drives an LED while the second potentiostat is used to characterize the cell. Data acquisition between the two potentiostats is synced so that phase information between the driving potentiostat and the acquiring potentiostat is obtained.

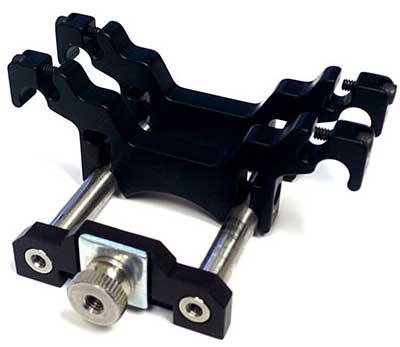

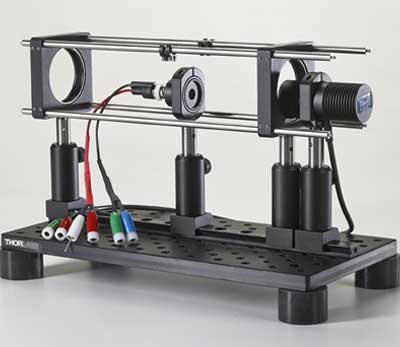

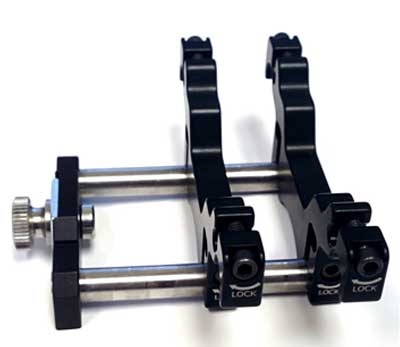

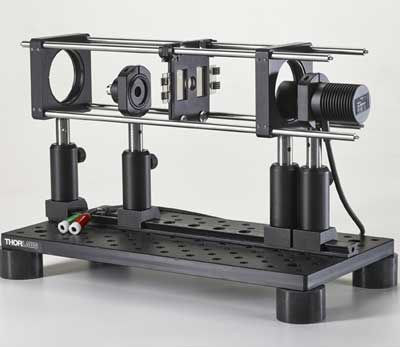

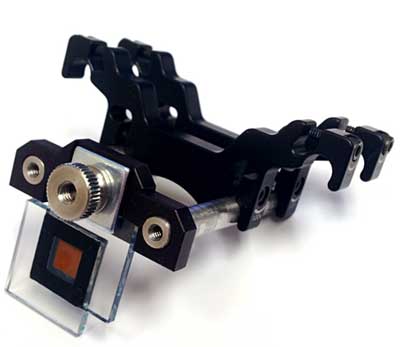

The dye-sensitized solar cell testing system includes a miniature optical bench with a dummy cell for background subtraction. The standard configuration includes a cell holder that can accommodate large and small cells. We have red, white (several temperatures), blue, orange, and yellow available. You could even provide your own LED. The system is fully controlled in our standard data acquisition software, Gamry Framework.
