Working Electrodes

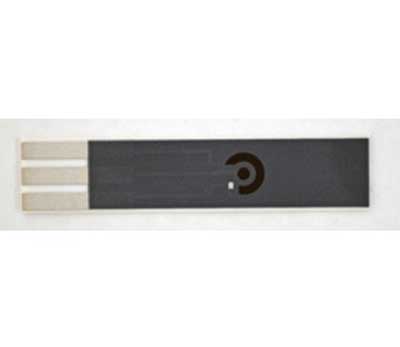

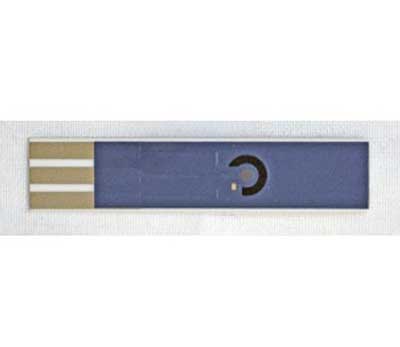

• Screen Printed Electrodes

  • Sold in a pack of 20
  • Printed on a corundum ceramic base

Dimensions:

Length: 25.40 mm
Width: 7.26 mm
Thickness: 0.63 mm

• • 2mm Au WE, Au CE, Ag/AgCl RE (printed)
  • Working electrode diameter is 2 mm,
  • Auxiliary electrode area is 4.00 +/- 0.05mm^2

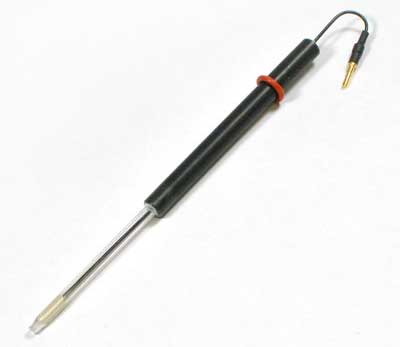

• Carbon Fiber Microelectrode Part No. 932-00011
  • 11 um disc
  • Glass/CTFE body
  • 4 mm OD
• Gold Microelectrode Part No. 932-00010
  • 10 um disc
  • Glass/CTFE body
  • 4 mm OD
• Platinum Microelectrode Part No. 932-00009
  • 10 um disc
  • Glass/CTFE body
  • 4 mm OD
• Platinum Working Electrode Part No. 932-00024 *
  • 3 mm disc
  • PEEK body
  • 7 mm OD

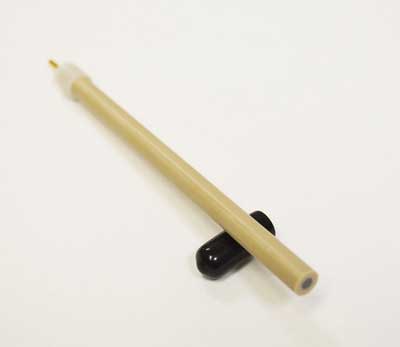

• Gold Working Electrode Part No. 932-00023 *
  • 3 mm disc
  • PEEK body
  • 7 mm OD
• Glassy Carbon Working Electrode Part No. 932-00022 *
  • 3 mm disc
  • PEEK body
  • 7 mm OD

* These electrodes are tested in 0.5 M H₂SO₄ up to 80 °C.
