Pouch Cell Holder

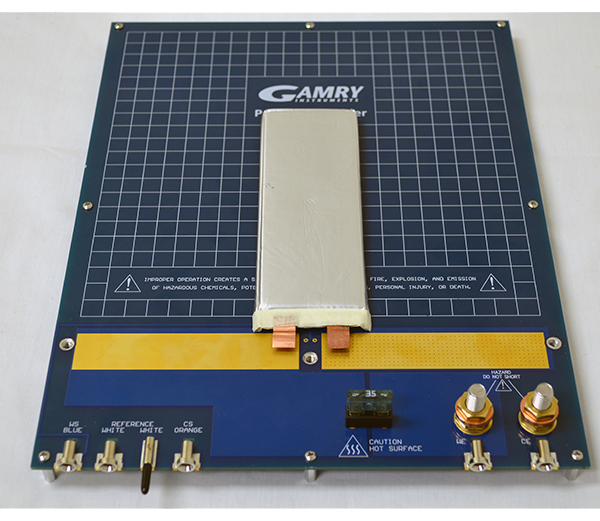

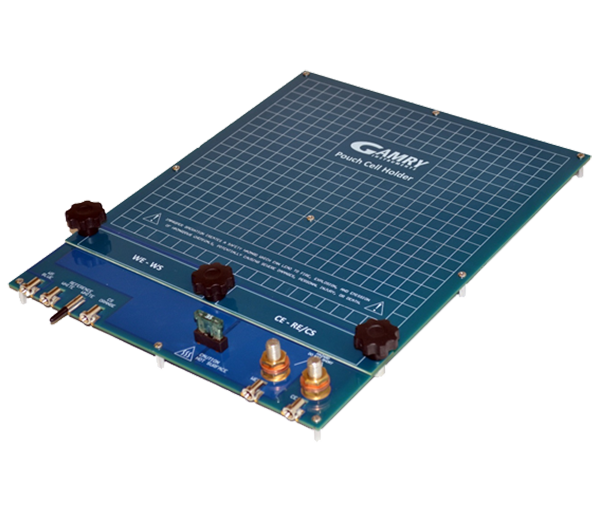

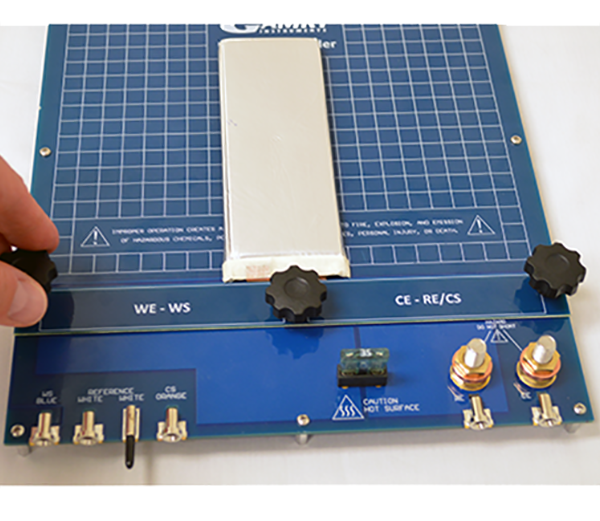

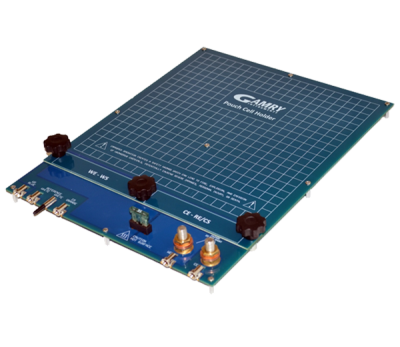

Pouch cell holder
Cited in the literature See research citations →

Connects a range of pouch cell sizes, with four-terminal measurement, fuse protection and up to 30 A.

What it does
  • Connects a wide range of pouch cells to a Gamry potentiostat
  • Carries up to 30 A without damage to the holder
  • Four-point measurement
  • Works with every Gamry potentiostat, including the 30K Booster
  • Standard 4 mm banana receptacles on the front edge, with a dual receptacle or pin for the reference
For applications including
Battery Testing
Request a quote
// Research citations

Cited in the literature

Independent research citations for this instrument are provided by Bioz and appear here once the widget loads.

Citation data provided by Bioz.
// Overview

The Pouch Cell Holder™ allows the researcher to connect a large variety of pouch cells to Gamry Instruments’ potentiostats. High currents, up to 30A, may be passed through the battery holder, without danger of destroying the holder. The Pouch Cell Holder allows four-point measurements, and is usable with all Gamry Instruments potentiostats, including the 30k Booster.

Product Details

Connecting the Pouch Cell Holder to Gamry Instruments:

General Gamry Instruments Potentiostats

Standard 4-mm banana-plug receptacles are mounted on the front edge of the holder to connect to your potentiostat. A dual receptacle or pin connection is available for the reference electrode. Be sure to remove the plastic guard from the pin on the reference connection before use. For the Reference™ 600+ Potentiostat, we supply 4-mm-to-2-mm adapters.

30k Booster

The Pouch Cell Holder is compatible with Gamry Instruments’ 30k Booster™ for high-current work. Connect the Booster to the Holder via the threaded connections to the Working Electrode (WE) and Counter Electrode (CE). Place the Booster’s connectors between the copper washers, and lock the connectors in place with the nuts. Use the M8 wrench (spanner) supplied with your 30k Booster to loosen and tighten the nuts

// Specifications

The complete technical detail

Specifications
Width × Length × Height:320 mm × 230 mm × 60 mm (12.60”× 9.05” × 2.36”)
Weight:450 g (1 lb.)
Maximum current rating:30 A
Maximum operational temperature:80°C (176°F)
Relative Humidity:90% (non-condensing)
Storage and Shipping Temperature:–40 to 75°C
// Resources

Documentation

Documentation
Pouch Cell Holder Operator's ManualPDF Pouch Cell Holder Data SheetPDF
