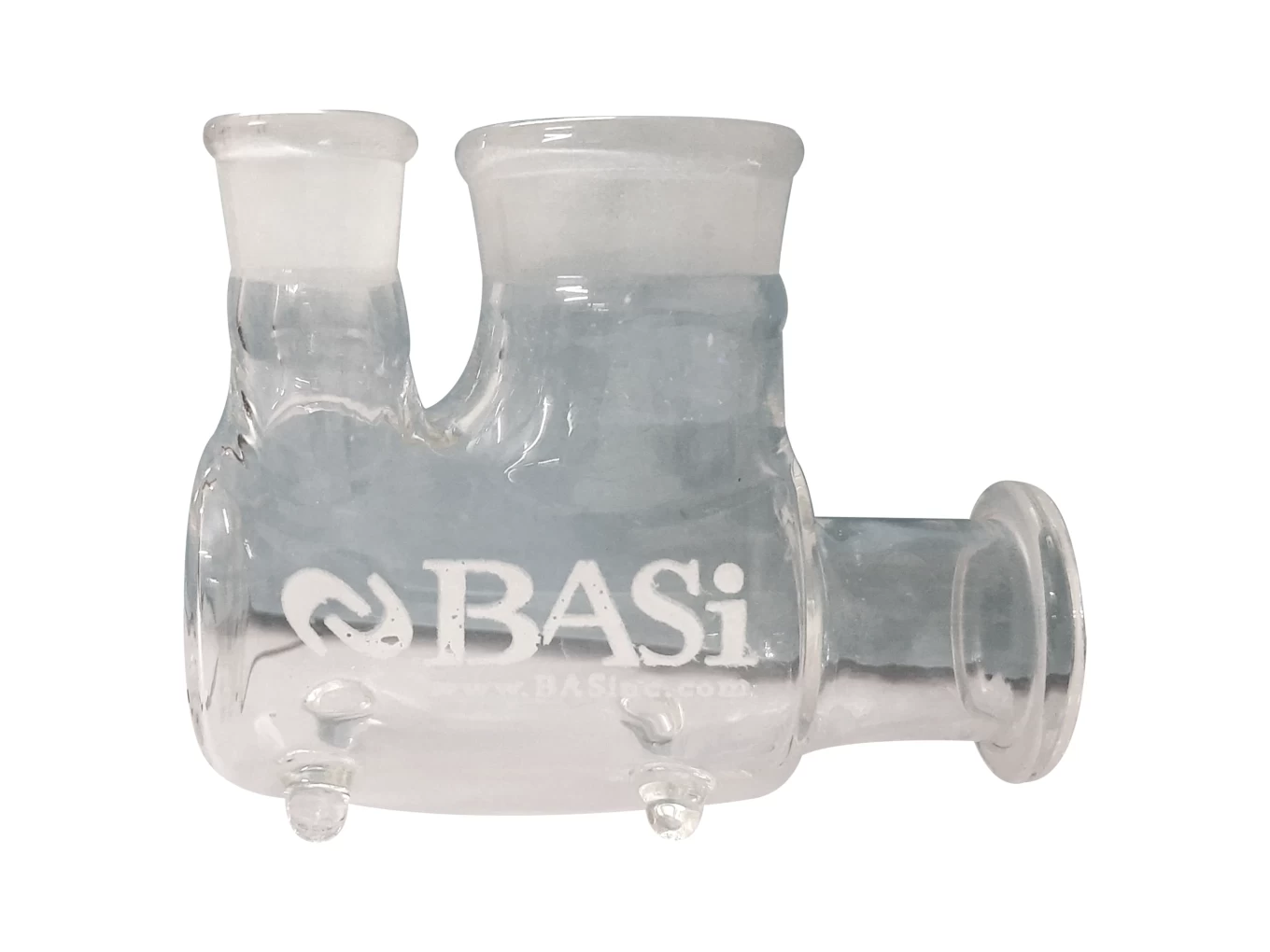

Photo EC H-Cell Kit

Photo-electrochemical H-cell kit

Fully equipped Photo-Electrochemical H-Cell Kits.

Available:  50 ml, 100 mL, 250 mL

What it does

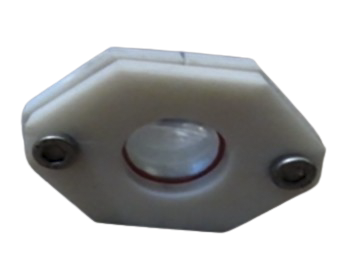

  • Horizontally mounted dual-compartment H-cell with a quartz window and 20 mm light input port
  • Built for photo-based electrocatalysis — hydrogen and oxygen evolution reactions
  • Gas-tight: each chamber has its own inlet and outlet for bubbling and evacuation
  • Chambers separate with an ion-exchange membrane to keep products apart (Nafion not included)
  • 50, 100 and 250 mL sizes
For applications including
ElectrocatalysisElectrolysis
Request a quote
// Overview

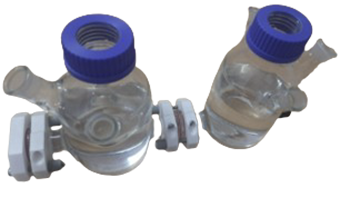

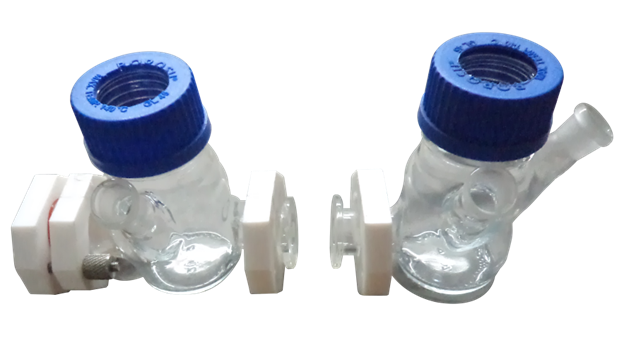

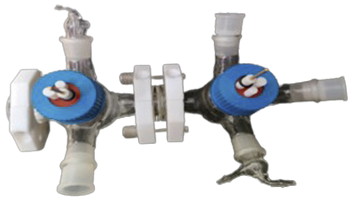

The Photo EC H-Cell Kits is a fully equipped, horizontally mounted dual-compartment H-Cell setup, featuring an additional quartz window with a 20 mm light input port for photo-based electrocatalysis studies, including the Hydrogen Evolution Reaction (HER) and Oxygen Evolution Reaction (OER).

Available: 50 ml, 100 ml and 250 ml

Features

  • Gas-Tight Construction: Two separate chambers, each with gas inlet and outlet, enabling solution bubbling and gas evacuation.

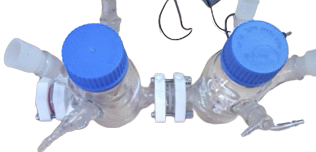

  • Chamber Separation: Chambers can be divided using an ion-exchange membrane (DuPont’s Nafion® membrane not included) to prevent electrochemical products at the working and counter electrodes from interfering with each other.

  • Photoelectrochemical Studies: Ideal for light-assisted catalytic experiments.

  • Potentiostat Compatibility: Compatible with Gamry potentiostat for precise measurements.

What's Included

Fully equipped Photo-Electrochemical H-Cells

50 mL Photoelectrochemical H-Cell - Gamry Part #990-00541
Includes:

Glass reservoirs with three-electrode set-up (2), Quartz window (1), Spacer (2), Grip nuts (2), Screws (2), Purge adaptor (2), PTFE support holder (2), Top silicon dummy (4), Plugs (6), Silicon tube 0.5 meters (4), Silicon septa (6)

100 mL Photoelectrochemical H-Cell - Gamry Part #990-00542
Includes:

Glass reservoirs with three-electrode set-up (2), Quartz window (1), Spacer (2), Grip nuts (2), Screws (2), Purge adaptor (2), PTFE support holder (2), Top silicon dummy (4), Plugs (6), Silicon tube 0.5 meters (4), Silicon septa (6)

250 mL Photoelectrochemical H-Cell - Gamry Part #990-00543
Includes:

Glass reservoirs with three-electrode set-up (2), Quartz window (1), Spacer (2), Grip nuts (2), Screws (2), Purge adaptor (2), PTFE support holder (2), Top silicon dummy (4), Plugs (6), Silicon tube 0.5 meters (4), Silicon septa (6)
