Universal Battery Holder
Connects coin cells through to 26650 cylindrical cells, with four-terminal connections, fuse protection and up to 30 A.
- Takes coin cells through to large cylindrical cells, up to 26650
- Carries up to 30 A without damage to the holder
- Four-point measurement

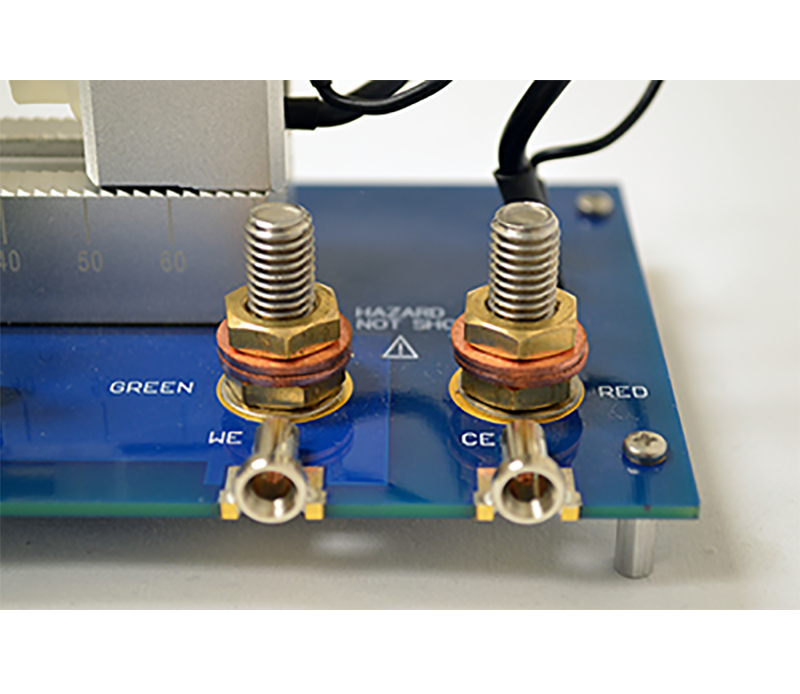

- Works with every Gamry potentiostat, including the 30K Booster
- Millimetre gauge for coarse adjustment; the moveable contact is spring-loaded onto the cell
Cited in the literature
Independent research citations for this instrument are provided by Bioz and appear here once the widget loads.

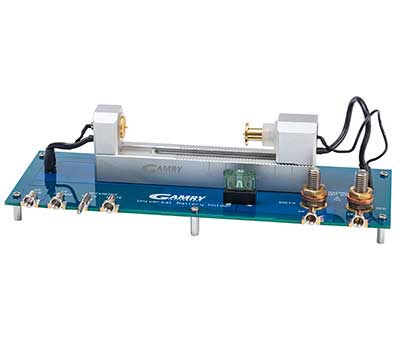

The Universal Battery Holder™ allows connection of a large variety of batteries, from coin-sized to larger cylindrical shapes (up to 26650), to Gamry Instruments’ potentiostats. High currents, up to 30A, may be passed through the battery holder, without danger of destroying the holder. The Universal Battery Holder allows four-point measurements, and is usable with all Gamry Instruments potentiostats, including the 30k Booster.
Product Details

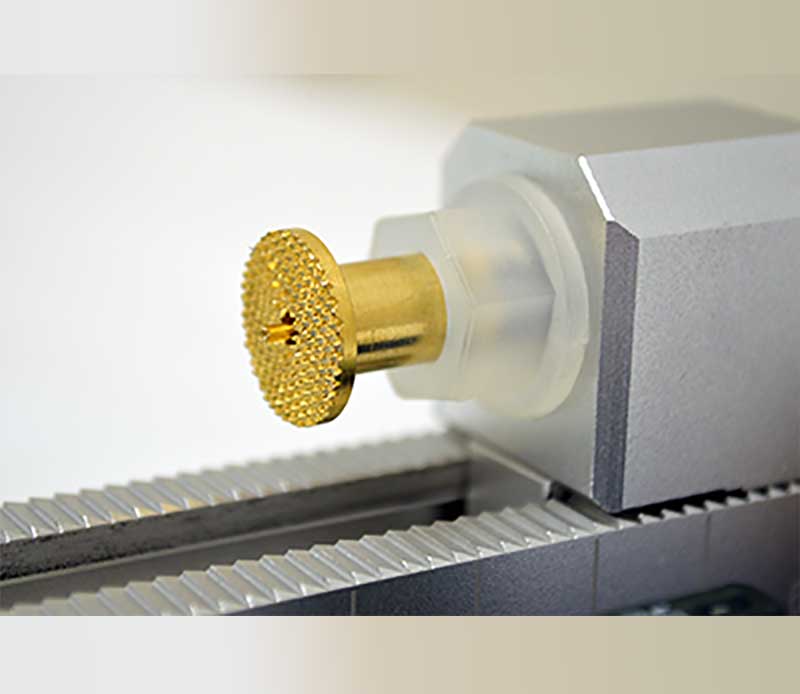

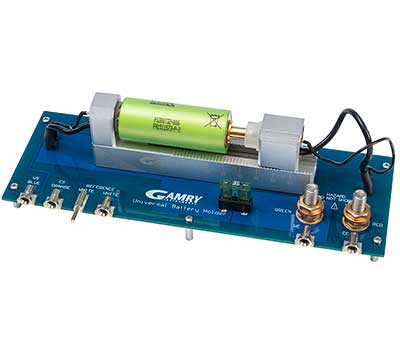

The Universal Battery Holder has a millimeter gauge for coarse adjustment of the battery contacts. Insert the battery. Tilt the moveable contact and slide it along the rail to the approximate length of the battery. The moveable contact is spring-loaded to ensure a firm contact with the battery. Common battery types that are compatible with the Universal Battery Holder are given in the table below. Many more batteries are compatible as well.
Battery Type |
Length (mm) |
CR2016 |
1.6 |
CR1220 |
2.0 |
CR2025 |
2.5 |
CR2325 |
2.5 |
CR2430 |
3.0 |
CR2032 |
3.2 |
CR2450 |
5.0 |
16340/CR123A |
34 |
14500 Lithium AA |
53 |
18650 |
65 |
26650 |
65 |
20700 |
70 |
21700 |
70 |
Specifications
| Maximum battery diameter: | 28 mm |
| Maximum battery length: | 84 mm |
| Minimum battery length: | 1 mm |
| Width X Length X Height: | 231 mm X 95 mm X 60 mm (9.10” X 3.75” X 2.36”) |
| Weight: | 450 g (1 lb.) |
| Maximum current rating: | 30 A |
| Maximum operational temperature: | 80°C (176°F) |
| Relative Humidity: | 90% (non-condensing) |
| Storage and Shipping Temperature: | –40 to 75°C |
| Maximum Shipping acceleration: | 30 G |
| Fuse: | 35 A Eaton BK/ATC-35, 32 V maximum |
