// Echem H-Cells line
H-Cells
- Membrane Research
- Fuel Cell Studies
- Echem Water Spitting
Available: 5 ml, 10 ml, 25 ml, 250 ml, 500 ml and 1000 ml.
// Overview

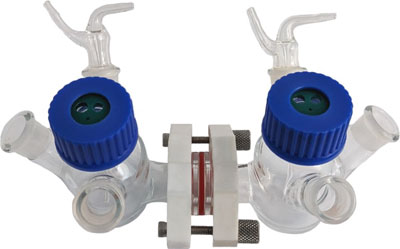

The H-Cell is a two-compartment electrochemical cell used for membrane testing, H2 permeation, or any other experiment where two separate electrode chambers are required.
Both compartments can be separated by an ion-exchange membrane. Thus, any byproduct generated at the counter electrode does not affect the working electrode's behavior and vice versa.
Available: 5 ml, 10 ml, 25 ml, 250 ml, 500 ml and 1000 ml.
Applications
- Membrane Research
- Fuel Cell Studies
- Electrochemical Water Spitting
- ASTM Grade Corrosion Studies
- Redox Flow Batteries
- CO2 Reduction Studies
- Reference Electrode Testing
More Info
// Specifications
Specifications
- Borosilicate Glass Cells with 45mm opening
- Membrane -∅ 16 mm or 20 mm
- Membrane Exposed Diameter:
- 16mm diameter for 25 , 50 , 100 , 250 mL cells
- 20mm diameter for 500 , 1000 mL cells
- Membrane holder - glass outer diameter
- 35~36 mm for all cells
- Membrane Exposed Diameter:
- Photo-electrochemistry (optional)
- Three-electrode setup
- Gas-purging joints (3) w/ adapters
- Volume:25 ml to 1L
- Silicone septa
