Use of Transmission Lines for Electrochemical Impedance Spectroscopy

Theory and Application of Transmission Line Models to High Surface Area Electrodes

Purpose of This Note

This application note discusses theory and practice of transmission lines. It outlines the necessity of transmission lines for modeling porous electrodes in Electrochemical Impedance Spectroscopy (EIS) and describes different kinds of models.

Several practical examples of different electrochemical energy storage and generation devices give suggestions how to evaluate such EIS spectra with Gamry’s Echem Analyst.

Introduction

The classical electrochemical interface can be described by a planar electron conducting electrode and an ion conducting electrolyte. Electrochemical reactions occur on the surface of the electrode.

The electrochemical behavior of this interface can be described by different models. One of the simplest and most common models is the Randles model shown in Figure 1.

simplified randles model

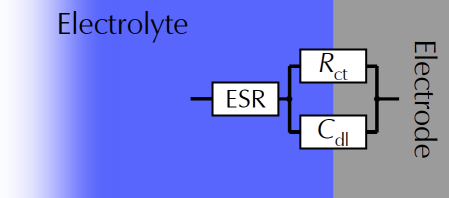

Figure 1 – Diagram of a simplified Randles model describing the electrochemical interface between an electrode and electrolyte.

The “equivalent series resistance” (ESR) represents the sum of resistances from the electrode, electrolyte, and electrical contacts. It is in series to a parallel connection of charge transfer resistance Rct and double layer capacitance Cdl.

Rct represents all Faradaic reactions that occur on the electrode’s surface. These reactions can be reversible and irreversible. In contrast, Cdl describes non Faradaic charge storage mechanisms. It is often replaced by a “constant phase element” for non-ideal assumptions.

This model is good for approximations and for describing electrochemical interfaces of planar electrodes. But it describes poorly the effect of porous electrodes that are used in most electrochemical cells.

Porous Electrodes

To increase performance, energy storage and generation devices such as electrochemical capacitors (ECs), fuel cells, or dye sensitized solar cells (DSCs) use highly porous electrodes. These electrodes exhibit a very high surface area compared to volume or weight. For example, ECs can have specific electrode surfaces area of 1000 m2/g and more.

Electrodes that are using highly porous materials can be differentiated into two parts – the base electrode and the porous electrode. The base electrode is generally an insulated and inactive metal foil where the active material is fixed on. Figure 2 shows a schematic setup.

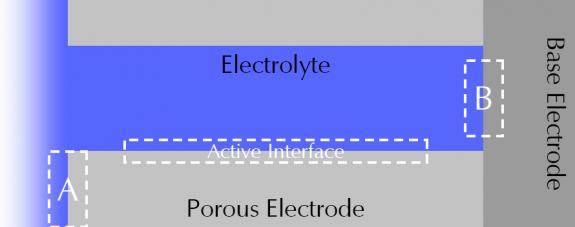

Classification of regions for a porous electrode interface

Figure 2 – Classification of regions for a porous electrode interface.

Compared to planar electrodes (see Figure 1), where reactions occur directly on the surface of the electrode. In contrast, the reaction velocity within the pore of porous electrodes is limited. The access to the active interface for ions is hindered due to the small inner volume of the pores. Hence the rate of electrochemical reactions exceeded the diffusion rate of the ion in the pore. This step becomes the dominating step.

Due to these restrictions on the electrochemical reactivity, the porous electrode has to be divided into three regions. These interfaces are marked “A”, “B”, and “Active Interface” (see Figure 2).

Region “A” represents the interface between the outer surface of the porous electrode and the electrolyte. Region “B” describes interactions between electrolyte and base electrode.

The most reactive parts itself is within the pore. This region is called “Active Interface”. It describes the interactions between active material of the porous electrode and electrolyte.

“Active Interface” describes the interactions between active material of th

EIS is the most commonly used technique to investigate these interfaces. It allows studying reaction mechanisms of electrochemical systems in a generally non destructive way and on different time scales within the same experiment.

For better understanding, different fit models can be used to estimate electrode and electrolyte parameters. In the following sections, different models will be introduced and explained by means of measurements on real cells. To follow the content of this application note, basic knowledge of EIS and modeling equivalent circuits is assumed.

If you need basic information on EIS and circuit modeling, see Gamry’s Application Notes:

"Basics of Electrochemical Impedance Spectroscopy"

"Equivalent Circuit Modeling in EIS
"

Transmission lines

The stepwise flux of ions within a pore can be described by using the generally accepted vernacular of Transmission Line. Figure 3 shows a model in its generic form. The model consists of several parallel and serially connected elements. It is used to describe the different regions shown in Figure 2.

fig3 Scheme of a generic transmission line model.

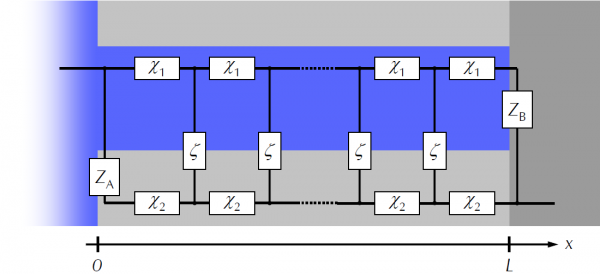

Figure 3 – Scheme of a generic transmission line model.

L is the length of the transmission line or the depth of the pore. The two interfaces “A” and “B” are represented by impedances ZA(x = 0) on the outer surface of the pore and ZB(x = L) on the base electrode at the end of the pore. Along the pore, the transmission line is represented by repeating impedance elements.

χ1 is the impedance of the electrolyte within the pore. Note that this impedance is different to the bulk electrolyte resistance that is represented as part of the ESR. χ2 is the impedance of the porous electrode’s solid phase. Both parameters describe the ohmic drop between 0<x<L. ζ describes the impedance at the “Active Interface” region shown in Figure 2.

Juan Bisquert[1] calculated the impedance, Z, for a general transmission line model according to Equation 1. This equation is the basis for modeling transmission lines for EIS spectra. For his calculations he assumed that χ1, χ2, and ζ are independent on their position (0<x<L) within the pore. Hence they can be treated as homogeneously distributed.

In practice, knowing the pore depth, L, allows one to determine important parameters such as the conductivity and diffusion coefficients from the impedance fit results. However, this analysis would go beyond the scope of this application note. Please see cited literature for detailed information.

Fitting transmission lines in the Echem Analyst

Gamry’s Echem Analyst contains several pre-built EIS models including different transmission line models that can be used immediately or tailored to your specific system.

In addition, the model editor enables building your own EIS models. A variety of most common elements can be interconnected to describe different electrochemical systems.

For more information implementing and modifying circuit models, see Gamry’s Application Note:
"User Defined Components in EIS Circuit Modeling"

For adjusting and calculating model parameters, the Echem Analyst offers two different algorithms. A Simplex algorithm and a Levenberg-Marquardt algorithm calculate the impedance to find adequate fit parameters. The Simplex method also has an Auto Fit function that doesn't place as much emphasis on correct initial guesses as to the values of your elements.  The Levenberg-Marquardt method can be faster but requires much better initial guesses on the element values.

The next sections describe all pre-built transmission line models in the Echem Analyst.

Unified” model

The “Unified” model can be used for testing different boundary conditions and limitations regarding the electrode. Limiting cases of transmission lines can be easily achieved by adjusting appropriate elements to be zero or very large.

The transmission line model “Unified” is shown in Figure 4. Not shown is a resistor in series to the model that represents the ESR.

This model uses only the Simplex algorithm as it would be computationally and algebraically prohibitive to calculate using the Levenberg-Marquadt algorithm. In total, eleven parameters can be modified and calculated.

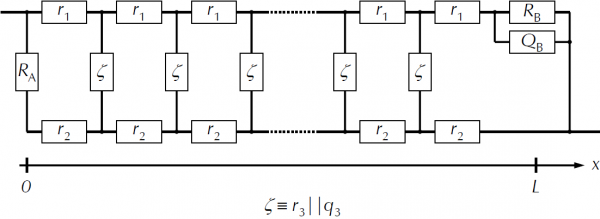

fig4 scheme of transmission line model unified

Figure 4 – Scheme of the transmission line model “Unified”. For details, see text.

Compared to the generic form of Figure 3, single and repeating impedances are replaced by specific elements:

single and repeating impedances are replaced by specific elements:

Note that lowercase letters are used for repeating elements and capital letters for single elements. Resistors will be represented with an R (or r) and constant phase elements will use the letter Q (or q).
The symbol “||” will be used to indicate a parallel combination of components.

ZB and ζ are both represented as parallel combination of resistor and constant phase element. The resistor describes charge transfer reactions at the interface. The constant phase element summarizes all polarization effects. In an ideal case, it can be treated as capacitor. However, a constant phase element also addresses non ideal capacitances resulting from inhomogeneities of porous electrodes.

All other components in the “Unified” model – ZA, χ1, and χ2 – are represented by simple resistors.

Bisquert Open” and “Bisquert Short

Figure 5 shows two transmission line models which describe limiting cases of the general transmission line model. Both were originally developed by Bisquert[2] to describe diffusion and recombination processes.

Model (a) is called “Bisquert Open” (BTO) and (b) is called “Bisquert Short” (BTS). In the Analyst, an additional resistor is in series to the model. It represents the ESR and is not shown in Figure 5.

– Two specific cases of transmission line models.

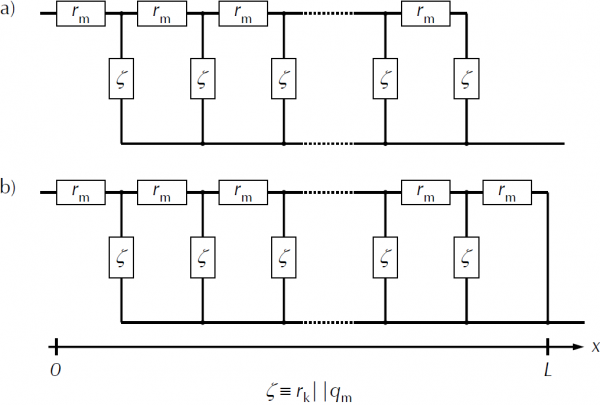

Figure 5 – Two specific cases of transmission line models. (a) Bisquert Open (BTO) and (b) Bisquert Short (BTS). For details, see text.

The boundary conditions for both models are:

boundry conditions for both models

In both models it is assumed that the conductivity of one resistive trail is much larger than the other one. Hence the impedance of the electrode’s solid phase χ2 can be set to zero. Only the electrolyte resistance, rm, within the pore is considered.

Similar to the “Unified” model, impedance ζ of the active interface is a parallel circuit of resistor and constant phase element. These elements represent the Faradaic and non-Faradaic impedances, respectively.

Impedance ZA is set to infinite (open circuited). This means in practice that electrochemical reactions do not occur on the surface of the porous electrode. Only reactions within the pore are going to be considered. ZA can be completely neglected at the fitting process.

The difference in both models is impedance ZB. At the “Bisquert Open” model, ZB is also set to infinite. The system is defined by “reflecting boundary conditions”. This means that the base electrode is completely insulating and no reactions (Faradaic or non-Faradaic) occur on its surface.

Note:Reflecting boundary condition” does not mean capacitive behavior. While capacitors exhibit infinite impedance only at frequencies near zero, ZB is infinite for all frequencies

In contrast, ZB is zero for the “Bisquert Short” model. This system is defined by “absorbing boundary conditions”. Hence the substrate’s surface is not entirely insulated and also interacts with the electrolyte. This would short-circuit the porous film.

Bisquert[2] calculated for both models the total impedance. The results are shown in Equation 2 and 3.

Bisquert calculated for both models the total impedance.Applications

Electrochemical systems can be very different. Electrochemical capacitors base on highly reversible non-Faradaic charge separation mechanisms while DSSCs are based on reversible redox reactions.

In addition, if limitations of electrochemical systems are exceeded, underlying electrochemical mechanisms can change drastically. Non-reversible Faradaic reactions can occur which can lead to severe damages of the cell.

The next sections apply the prior discussed about transmission lines on practical examples.

Electrochemical capacitors

High power electrochemical capacitors are developed for a number of applications. These include uninterruptible power supplies, lasers, and power electronics for electric and hybrid vehicles among others. They provide a very high capacitance in a relatively small volume and weight.

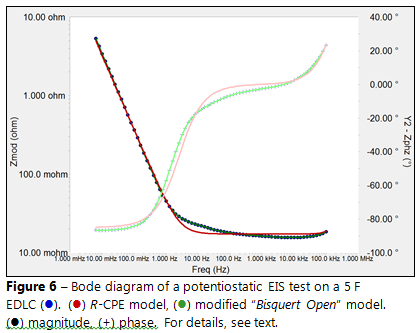

Figure 6 shows the Bode diagram of a potentiostatic EIS test on a 5 F electric double layer capacitor (EDLC) from Nesscap. A DC voltage of 0 V with an AC voltage of 1 mVrms was applied to the capacitor. The frequency range varied from 100 kHz to 5 mHz.

Bode diagram of a potentiostatic EIS test

In addition, two different fits of models are shown – a R||CPE model (red curve) and a modified “Bisquert Open” model (green curve). An additional inductance (L1) was added to both models and is in series to the ESR. A detailed setup is shown in Figure 7.

models used to fit capacitor data

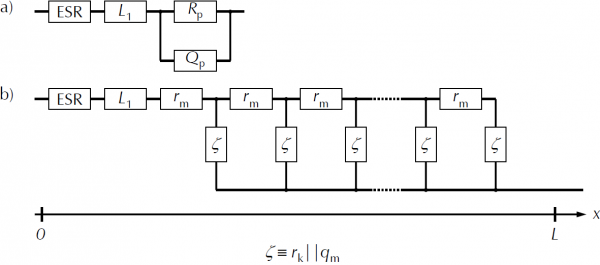

Figure 7 – Two models that are used to fit the capacitor data that are shown in Figure 6. (a) R||CPE model, (b) modified “Bisquert Open” model.

Model (a) is an extended version of a Randles model shown in Figure 1. The double layer capacitance is replaced by a constant phase element Qp to simulate non ideal electrode behaviors. Model (b) is a modified “Bisquert Open” model.

The very simple R||CPE model (red curve) shows poor agreement with the EIS spectrum of Figure 6, especially at frequencies above 1 Hz. In this region the transition from resistive to capacitive behavior occurs. The phase angle changes from nearly 0˚ to 90˚. At very high frequencies, inductance is the dominating part showing a positive phase angle.

In contrast, the modified “Bisquert Open” model (green curve) overlays nearly perfectly with the capacitor’s spectrum in all frequency regions. It models very well the incremental decrease of the impedance and increase of the phase angle at frequencies above 1 Hz.

Table 1 lists fit parameters for the modified “Bisquert Open” model. The pore depth L and resistance rk are locked. Both columns are highlighted in gray. As no Faradaic reactions are expected on the active interface of the EDLC, rk was set to a very high value.

For adequate results, the value of L should be decided prior to the fitting and locked to a particular value. For this application note L is assumed to be dimensionless to keep the discussion straightforward.

Fit results for a 5 F EDLC using a modified “Bisquert Open” model.

Note that Ym and the dimensionless exponent α describe the constant phase element. Ym has the unit S•sα (siemens times second to the power of α). For α = 1, Ym has the unit Farad (F) and represents an ideal capacitor. In contrast, if α= 0, Ym is the reciprocal of a resistor with the unit S = Ω-1.

Dye-sensitized solar cells

Dye-sensitized solar cells are another application where transmission line models are regularly employed. DSSCs are solar cells that utilize organic or organometallic dye molecules. They are adsorbed on mesoporous TiO2 to absorb light efficiently. Excited electrons are then extracted out through the TiO2.

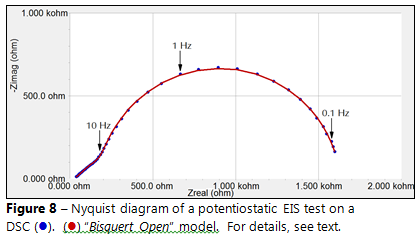

Figure 8 shows an impedance spectrum of a DSSC using porous TiO2 and a liquid electrolyte. It was recorded in potentiostatic EIS mode with zero DC voltage and an AC voltage of 10 mVrms, over the frequency range of 10 kHz to 70 mHz.

Figure 8 – Nyquist diagram of a potentiostatic EIS test on a DSC .  “Bisquert Op

The Nyquist plot shows at higher frequencies a characteristic linear shape in the Nyquist diagram with a slope of about 1. This region – up to about 10 Hz – represents the transmission line. At lower frequencies the curve has the shape of a half circle representing Faradaic reactions on the electrodes surface.

The spectrum was modeled using a “Bisquert Open” model with an ESR in series. It fits nearly perfectly over the entire frequency range. The fit results are summarized in Table 2. The pore depth L was again locked.

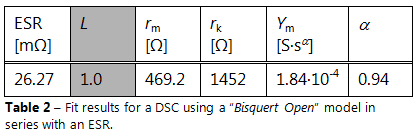

DSC using a “Bisquert Open” model in series with an ESR.



Note that in contrast to EDLCs (see prior section), resistance rk is now much smaller due to Faradaic reactions occurring on the active material. The constant phase element (Ymα) which represents the capacitance of the system is much smaller compared to the EDLC.

In certain types of DSSCs, organic hole conductors are used instead of a liquid electrolyte. Region “B”, the interface between ionic conductor and base electrode, is no more completely insulating and reactions can occur. Fabregat Santiago et al.[4] developed a model to fit this type of DSSCs. The basic model is shown in Figure 9.

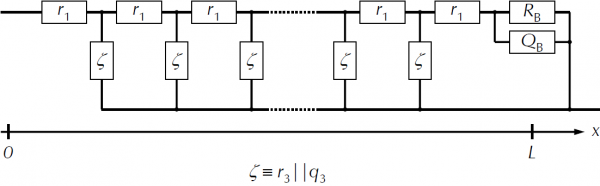

Figure 9 – Scheme of a transmission line model to describe TiO2/organic hole con

Figure 9 – Scheme of a transmission line model to describe TiO2/organic hole conductor DSSCs. For details, see text.

The “Unified” model enables the possibility to adjust appropriate parameters and to model different cell conditions. Single parameters can be individually adapted.

In this particular case, the impedance on the outer surface of the electrode’s pore is open. This can be simulated with a very high value for RA. The impedance of the conducting electrode material is neglected and can be set to zero (r2 = 0).

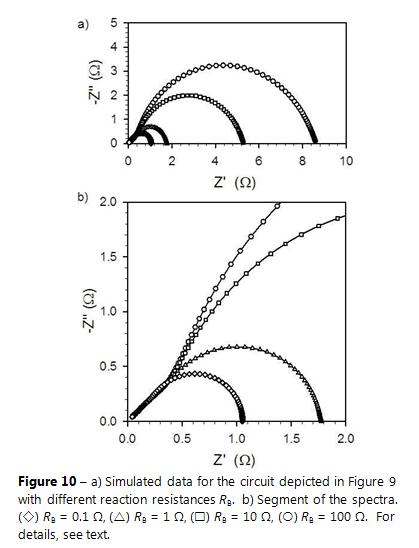

Computational simulations of Nyquist plots for this type of DSSCs are shown in Figure 10. It shows different spectra for increasing reaction resistances RB on the base electrode/electrolyte interface.

Simulated data for the circuit depicted in Figure 9

The spectra of this specific case looks similar to the Nyquist plot in Figure 8. With increasing reaction resistance RB the width of the half circle is increasing.

However, the underlying reaction mechanism is different as the base electrode is not completely insulating (“reflecting boundary conditions”). Electrochemical reactions (Faradaic and non Faradaic) can occur on the base electrode.

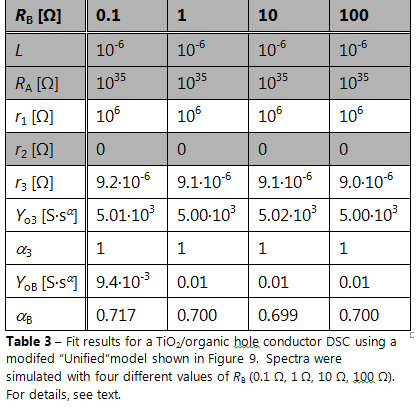

Table 3 lists up all parameters that were used to generate the spectra of Figure 10. RA, RB, r2, and the pore depth L were locked during fitting and are highlighted in gray.

lists up all parameters that were used to generate the spectra

Conclusion

Porous electrodes are regularly utilized for applications where high surface areas are beneficial. Impedance spectroscopy on porous materials regularly results in data that can not be modeled with standard circuit components. Hence transmission lines are required due to the distributed nature of the interfacial impedance throughout the pore. Theories of different models that are used in literature and included in Gamry’s Echem Analyst are discussed. By means of examples on different energy storage and generation devices, utilization of the Echem Analyst and evaluation of transmission lines are shown.

Acknowledgements

We gratefully acknowledge the data and very useful comments from Prof. Juan Bisquert and Dr. Francisco Fabregat Santiago in the process of writing this paper.

Literature

[1] Bisquert, J., Phys. Chem. Chem. Phys., 2, pp. 4185-4192, 2000.
[2] Bisquert, J., J. Phys. Chem. B, 106, pp. 325-333, 2002.
[3] Wang, Q.; Moser, J.-E.; Grätzel, M., J. Phys. Chem. B, 109, pp. 14945 19453, 2005.
[4] Fabregat-Santiago, F.; Bisquert, J.; Garcia-Belmonte, G.; Boschloo, G.; Hagfeldt, A., Sol. Ener. Mat. & Sol. Cells, 87, pp. 117-131, 2005.
