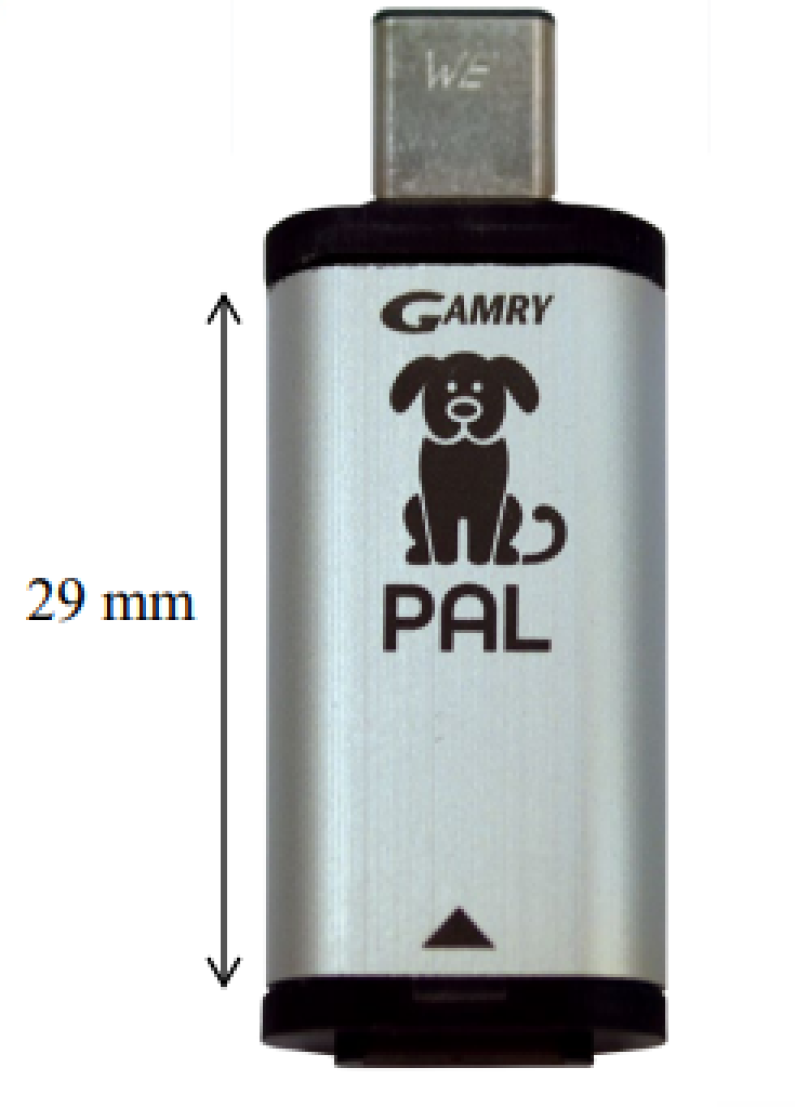

The Gamry Pal
The Gamry Pal is a compact potentiostat made with portability and utility in mind. Powerful enough to teach voltammetry in a hands-on classroom with screen-printed electrodes. It’s capable enough for lightweight laboratory testing using the optional cell cable.
Software is included!
Techniques Include:
- Chronoamperometry
- Linear Sweep Voltammetry
- Cyclic Voltammetry
- Differential Pulse Voltammetry
- Normal Pulse Voltammetry
- Open Circuit Potential
- Potentiostatic Electrochemical Impedance Spectroscopy
- Square Wave Voltammetry
Specifications:
- Max Applied Voltage: ±2.5V
- Max Current: 30 mA at ±1.5V or 20 mA at ± 2.5V
- Compliance Voltage: ±3.5V
- OCP: ±2.45V • 7 Current Ranges
- 100 nA – 30 mA • EIS Range: 100 mHz – 100 kHz
- Year Warranty • Windows 10 or 11; Android 6 • Max Sample Rate:1000 samples/secon
