Fluidic Configurations for QCM-I

Quartz Crystal Microbalance with ImpedanceAnalysis

The QCM-I and QCM-I Mini systems are designed to be modular so that they can be configured to use the sensors and fluidics that are most appropriate for the user’s experiments.

This technical note summarizes the basic fluidic configurations that can be used with the QCM-I flow- cell sensor holders which are part of both QCM-I systems. The pump and injection valve options are provided as part of the QCM-I configuration and can be added to the QCM-I Mini base specification.


Pump Flow Control with Manual Sample Introduction

It is recommended that samples are introduced to the QCM-I flow-cells using a pump to control the flow. In the simplest setup, shown in figure 1, a peristaltic pump* is used to suck buffer directly from a beaker or other container. Sample is introduced to the flow-cell by briefly stopping the flow, transferring the end of the tube to the sample vial and restarting the flow again.

This simple setup can be used for most experiments; however, the manual method of introducing a sample can impact the reproducibility and the quality of the data in the experiments. Under constant flow conditions, if the sample chamber temperature is set well above or below room temperature, changes in the flow rate can cause transient excursions in the QCM-I signal. Care should be taken to ensure no bubbles are introduced to the flow in the process. The pump can be reversed to remove them if necessary.

flow path qcmi flowcellFigure 1: Schematic diagram of the flow path of a QCM-I flowcell with peristaltic pump.
*The peristaltic pump is a standard item delivered with the QCM-I and can be ordered optionally for QCM-I Mini

perisatatic pump

The peristaltic pump has 12 rollers to provide pulse-free operation. Each QCM-I sensor channel is connected to a separate pump channel. These can either be linked so that they always operate together or with an ICC pump can also be controlled independently to allow for different flow rates on different channels.

For linked channels, the flow can be stopped on one channel while the other channel is running by turning the on/off valve off andreleasing the tubing clamp on the pump.



Figure2: Peristaltic pump, 12 roller, 2 channel ICC

Fixed Volume Sample Injection (6-Port valve)

Samples can be very reproducibly injected with an HPLC type 6-port sample injection valve. This can be used to pass a controlled volume of sample over the sensor (variable upto the total volume of the loop).

fixed volume sample injection

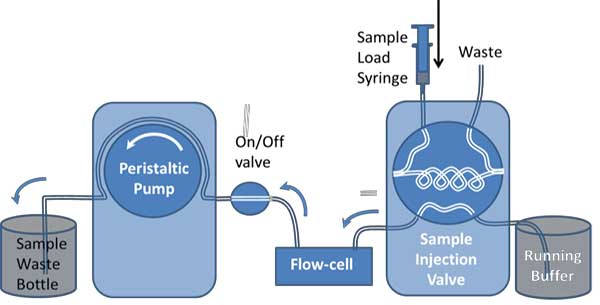

Figure 3: Schematic Diagram for fixed volume sample injection under continuous flow

For analytical measurements the loop is usually loaded with double it’s volume of sample and only half of the loop is injected. This is because the buffer pushing the sample through the loop mixes with it at the back of the sample. For these reasons, the loop size should also be at least four times larger than the combined flow-cell and valve-to-cell tubing volume. This can be measured by determining  the time for an injected air sample to emerge from the cell using a known pump flow rate. 500ml is the minimum loop size typically used. For small volume injections the loop can be only partially filled.

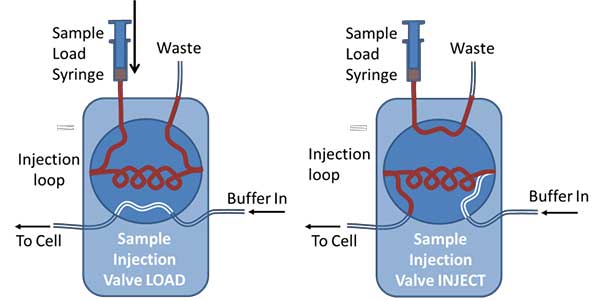

injection valve in load Figure 4: Schematic Diagram for Injection Valve in Load and Inject Positions.
“load sample onto the loop” and “inject sample into the flow-cell”

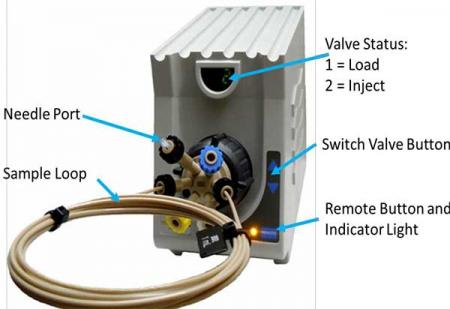

injection valve figure5Figure 5: Injection Valve (Rheodyne MX series. Other valves can also be used)

One potential disadvantage of using the loop is that the difference in tubing length, when the valve is switched, can cause changes in the back pressure. This is more likely to be the case at high flow rates or for viscous samples. Depending on the valve model, the internal bore of the valve may also have an effect.

The extended length of tubing can also provide surface area for the adsorption of material from the sample. This means the loop should be thoroughly rinsed between different samples and may be a source of contamination in certain circumstances.

ne potential disadvantage of using the loop is that the difference in tubing length, when the valve is switched, can cause changes in the back pressure. This is more likely to be the case at high flow rates or for viscous samples. Depending on the valve model, the internal bore of the valve may also have an effect.

The extended length of tubing can also provide surface area for the adsorption of material from the sample. This means the loop should be thoroughly rinsed between different samples and may be a source of contamination in certain circumstances.

Automated Injection from Sample Vial (6-Port valve)

An alternative arrangement for the 6-port valve allows the automated injection of a sample taken from a sample vial, with continuous flow and without the use of a loop. The advantages of this arrangement are:

  • No pressure effect on the flow path after switching,
  • Reduced length of tubing to adsorb or desorb sample.
  • No dilution of the sample towards the end of the injection, as would be the case if the whole loop was injected
  • No limit to the size of sample injected.

However, the user must ensure that there is enough sample in the sample vial for the length of the injection, otherwise air will be injected to the flow-cell.

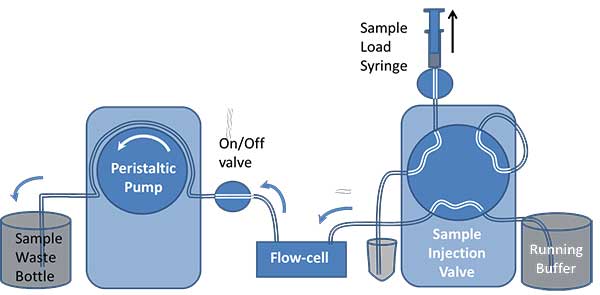

6 port valve figure8Figure 6: Schematic Diagram for 6-port valve with sample sucked up from a sample vial

The valve is primed with the sample using the priming syringe before the injection. This is similar to loading the sample onto the injection loop. When the valve is switched to Inject, the sample in the vial is sucked by the pump directly to the flow cell. During the initial setup, the valve can be switched to inject and buffer drawn through the valve to eliminate all bubbles and flush the valve fully.

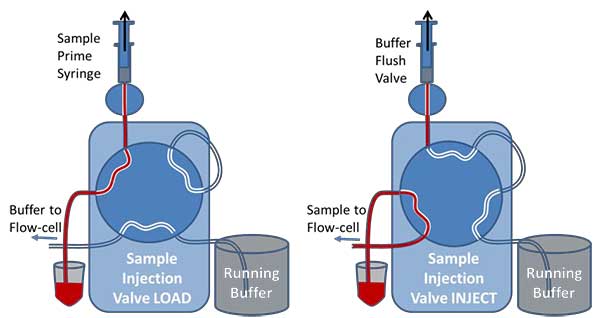

injection valve load inject figure7Figure 7: Schematic Diagram for Injection Valve in Load and Inject Positions.
“load sample into valve” and “inject sample into the flow-cell”

After the sample has been injected, the Sample Load syringe should be used to suck water or buffer through the valve to rinse the tubing before another sample is introduced. For small sample volumes, air should be sucked through the sample load/prime tubing before the sample to prevent the sample from being diluted.

Very small sample volumes can be injected and recovered by leaving the valve in the inject position and allowing air to follow the back of the sample. The flow can then be stopped before the air enters the flow-cell and reversed to return the sample to the sample vial. It will be diluted, however.

Two-Channel Automated Injection from Sample Vial (10-Port valve)

For a two-channel system, a similar setup can be used as shown below using a 10-port valve.

The valve switches both channels at the same time, so both channels will undergo the same process.

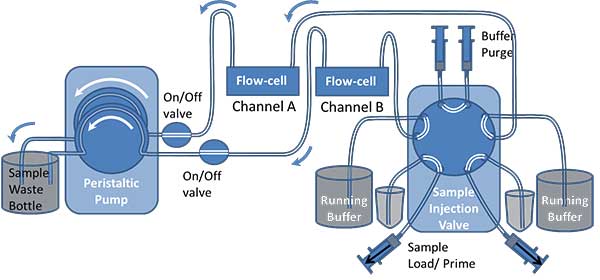

10 port valve figure8Figure 8: Schematic Diagram for 10-port valve with sample sucked up from a sample vial

Figure 9 shows the valve in Load and Inject positions. In “Load” position the samples can be loaded onto the valve with the Sample load/prime syringes. The top buffer load/prime syringes should also be used to push buffer through the top part of the valve to ensure air bubbles are excluded from the valve. Different samples can be loaded and injected onto the two channels. If one channel needs a continuous flow of just buffer, both sample inlet and buffer inlet tubes can be placed in the buffer container. However, both buffer and sample lines still need to be primed before the injection.

During the initial setup, the buffer purge syringes can be used to fill all the valve with buffer, so that the valve has been completely rinsed and all bubbles are removed.

injection valve load diagram figure9

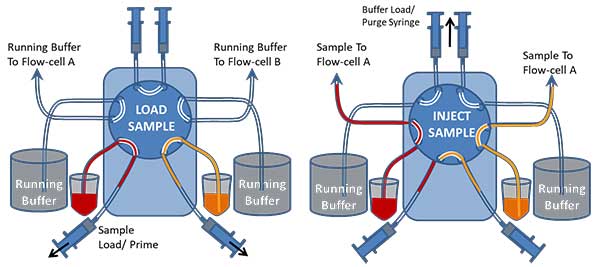

Figure 9: Schematic Diagram for Injection Valve in Load and Inject Positions.
“load sample into valve” and “inject sample into the flow-cell”

After samples have been injected, the Sample Load syringes should be used to suck water or buffer through the valve to rinse the tubing before another sample is introduced. If there is only a limited quantity of sample, air should be sucked through before the sample is loaded to prevent it from being diluted by the buffer at the sample/buffer interface in the tubing.

Very small sample volumes can be injected and recovered by leaving the valve in the inject position and allowing air to follow the back of the sample. The flow can then be stopped before the air enters the flow-cell and reversed to return the sample to the sample vial. The sample will be diluted, however.

Fixed Volume Sample Injection with a 10-Port Valve

The 10-port valve can be configured to run with an injection loop on a single channel. This is shown in figure 10. The fluidic considerations are the same as with the 6-port valve. The only difference is that the redundant 4 ports can be connected as shown to allow the entire valve to be flushed with buffer.

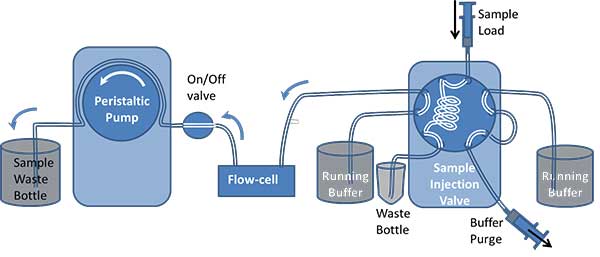

diagram 10 port valve figure10Figure 10: Schematic Diagram for 10-port valve with sample loop
