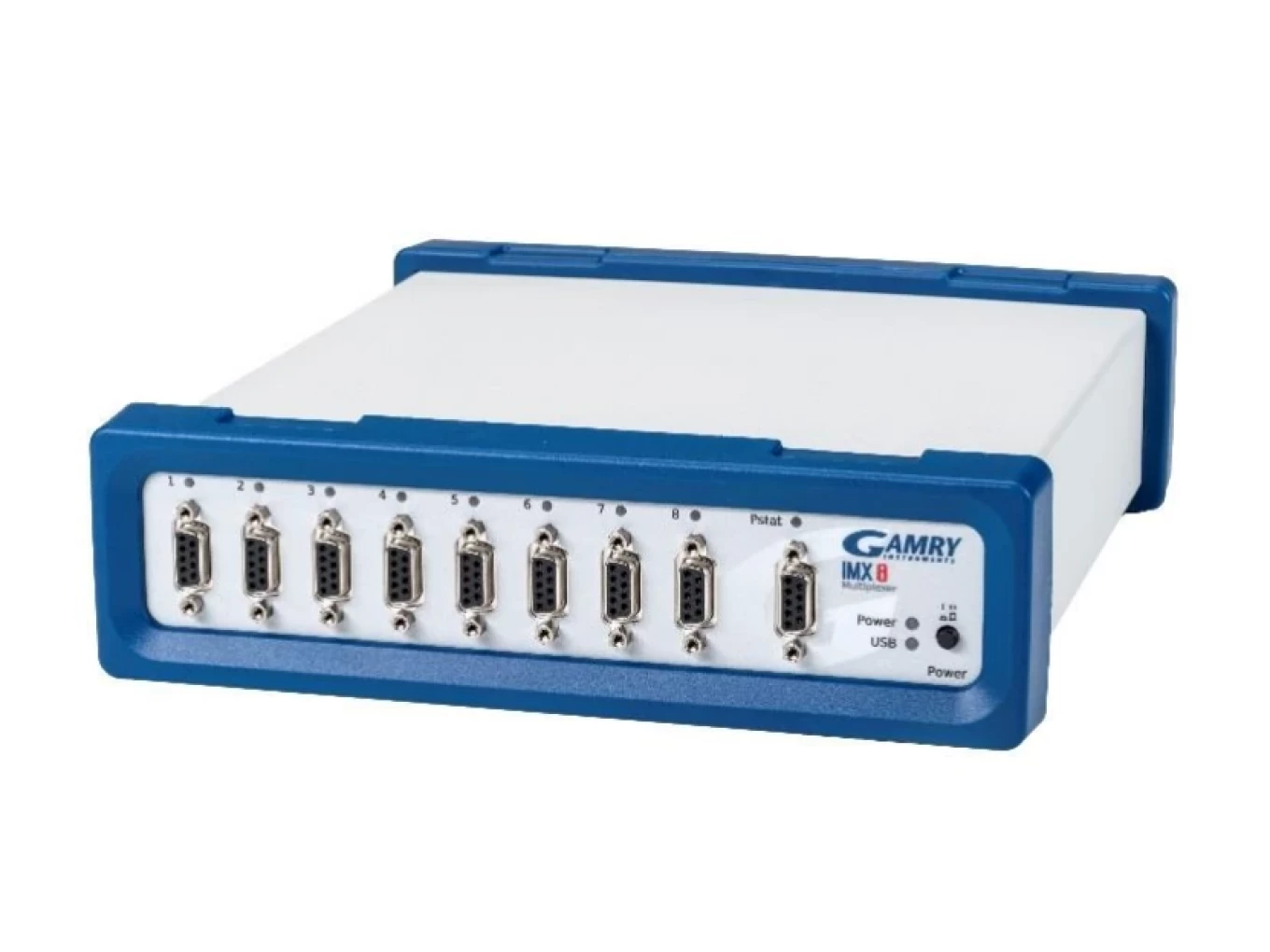

IMX8 Electrochemical Multiplexer

The IMX8™ Electrochemical Multiplexer is an affordable way to expand the throughput of your lab. Experiments can be sequentially multiplexed on up to 8 channels. The IMX8™ is ideal for corrosion inhibitor testing, EIS evaluation of paints/coatings, monitoring of field probes for corrosion tests, and chemical sensor development.

Key features include:

• 8-channel for sequential measurements
• DC and AC experiments
• Industry standard multiplexed experiments

Overview

The IMX8™ Electrochemical Multiplexer partners with a Gamry Potentiostat to convert a single potentiostat into a powerful instrument suitable for sequential multichannel operations. It allows you to sequentially take measurements on up to eight electrochemical cells. The IMX8™ Multiplexer is great for automating repetitive experiments, and for increasing throughput on long-term experiments where data can be taken periodically. Each of the eight Multiplexer channels also incorporates a "local" potentiostat to polarize the sample when not participating in the electrochemical experiment. The IMX8™ is not usable for simultaneous multichannel experiments across multiple cells. For simultaneous multichannel experiments see the multichannel potentiostat.

*Note that EIS through the multiplexer is limited to 100 kHz

Applications

• Corrosion Inhibitor Testing
• Paint/Coating Evaluation
• Galvanic Corrosion
• Corrosion Monitoring
• Chemical Sensor Development

Standard Features

• 8-channel for sequential measurements.
• DC and AC experiments.
• Includes industry standard multiplexed experiments.
• 8 Local Potentiostats – Inactive channels can be set to open, short, or polarized.
• Compatible with Interface 1010/1000 and Reference 600+/620 Potentiostats
• Warranty – Protected by 2-year factory service warranty.
