Reference Electrodes


This Application Note presumes that you have a basic understanding of potentiostat operation.  If you are not that knowledgeable concerning electrochemical instrumentation, please read Gamry’s Potentiostat Fundamentals  before continuing.  Experienced potentiostat users may skip the primer and read on.

It's only natural that electrochemists concentrate on the working electrode. After all, reactions at the working electrode are what they study.  However, the reference electrode shouldn’t be ignored. Its characteristics can greatly influence electrochemical measurements. In some cases, an apparently "good" reference electrode can cause a complete failure of the system.

For reliable reference electrode performance, you should assign a “Lab Master” and treat it very, very carefully so it can serve as a standard for your other reference electrodes. Never use the Lab Master in an actual experiment. The only purpose of the Lab Master is to serve as a check for the other reference electrodes. If a reference electrode is suspected to be bad, you can check the potential versus the Lab Master.  You can do that with a voltmeter, or with your Gamry Potentiostat by running and open circuit potential.  If the potential difference is less than 2-3 mV, it's OK.  If it's higher than 5 mV, it needs to be refreshed or discarded.

The Ideal Reference Electrode

Everyone agrees that an ideal reference electrode has a stable, well-defined electrochemical potential. Common reference electrodes (SCE, Ag/AgCl, Cu/CuSO4) meet this criterion when they are functioning properly. Many workers do not realize how often reference electrodes fail, causing drastic changes in their potential.  Many complaints of potentiostat failures turn out to be reference electrode failures.

An ideal reference electrode should also have zero impedance.  As discussed below, a reference electrode’s impedance can strongly affect the performance of a potentiostat.

Impedance of Laboratory Reference Electrodes

The impedance of a standard laboratory reference electrode is usually determined by the resistance of its isolation junction. This junction separates the reference electrode’s internal filling solution from the test electrolyte. A variety of junction types have been used, including ceramic frits, unfired Porous Glass Frits. and asbestos threads. A slow flow of the filling solution through this junction is necessary for proper electrode operation. This flow can have the unwanted effect of altering the test solution composition, so the flow rate is kept to a minimum.

Unfortunately, slower flows require a more restricted flow path, and restrictions raise the resistance of electrolyte in the path. There is a fundamental tradeoff between electrode impedance and leakage rate. An SCE with a Porous Glass Frit (for example Gamry Instruments’ P/N 930-03) will typically have an impedance of about 1 kohm. Ceramic junctions can have lower impedance than this while asbestos thread junctions have much higher impedance. We have prepared an application note that describes checking the impedance of your reference electrode.

Reference electrode junctions can become clogged, often without causing any significant shift in the reference’s DC potential. Adsorption of organic materials or precipitation of insoluble salts in the junction can both cause clogging. The resistance of a clogged junction can exceed 1 MΩ.

A double junction reference electrode is used to minimize filling solution contamination of the test electrolyte. A double junction is often required when chloride ion contamination is a concern. Reference electrodes are often filled with a saturated solution of very soluble KCl. Even the small amount of flow through the junction can produce a significant chloride concentration in the test solution. A double junction reference has two junctions. The first separates the reference electrode from an intermediate solution. This solution is then isolated from the test solution by a second junction. The intermediate solution is generally not as conductive as the KCl in the reference electrode junction, so the impedance of a double junction reference is usually more than twice that of a single junction electrode.

Electrochemists often use a Luggin Capillary to control the placement of the reference electrode relative to the working electrode. The Luggin capillary is filled with electrolyte and is used to position the sensing point of a reference electrode to a desired point in a cell. The Luggin capillary in a laboratory cell is made from glass or plastic. The Luggin holds the reference electrode as shown in Figure 1. The tip of the Luggin capillary near the working electrode is open to the test solution. The reference electrode senses the solution potential at this open tip.

Reference Electrode: Luggin Capillary.

Figure 1. Luggin Capillary.

Note that the Luggin tip is significantly smaller than the reference electrode itself. The Luggin capillary allows sensing of the solution potential close to the working electrode without the adverse effects that occur when the large reference electrode is placed near the working electrode. The resistance of this electrolyte adds to the reference electrode impedance. Larger diameter, shorter Luggin capillaries have lower impedance than narrow bore, longer capillaries.

Corrosion chemists often use a pseudo-reference electrode in electrochemical corrosion testing. The pseudo-reference is a second piece of the working electrode material immersed in the same solution. If both the working electrode and pseudo-reference corrode similarly, they should have similar potentials. In most cases, the impedance of a pseudo-reference electrode is smaller than that of standard reference electrodes.

Bubbles and Reference Electrode Impedance

A reference electrode with a gas bubble interrupting its electrolyte path has a very high impedance. The bubble can be produced by electrolysis, from deaeration gas, outgassing of a heated electrolyte, or from trapped air. You should always check that your electrochemical setup has an unbroken electrolyte path from the working electrode to the sensing element within the reference electrode.

Be especially careful if you reference electrode has a flat isolation frit. If this flat surface is horizontal within the cell, it can easily trap a gas bubble. A 45 degree angle on this surface allows natural convection to remove any bubble that tries to stick on this surface.

Luggin capillaries are also notorious for problems with bubble entrapment.

Reference Electrode Impedance and DC Errors

High impedance reference electrodes can cause DC errors. At DC, the electrometer input current of most modern potentiostats is less than 50 pA.  Ohm’s Law tells you that a reference electrode with a 20 kΩ resistance causes a DC voltage measurement error of less than one microvolt. Reference electrode potentials are typically only reproducible to about one millivolt, so a one microvolt error is inconsequential. Reference electrode impedance must get quite high before DC errors become significant.

Reference Electrode Impedance and AC Errors

The situation for AC signals is quite different. A typical reference input has a capacitance of 5 pF.  A 20 kΩ reference electrode connected to this input forms an RC low pass filter, Figure 2, where low frequency signals input to the filter are transferred unchanged to the output. Higher frequencies are filtered out. This setup forms an RC low pass filter with a 100 nsec time constant. This filter will severely attenuate sine waves with frequencies greater than 1.5 MHz. It will also cause a phase shift of close to 4° at 100 kHz.

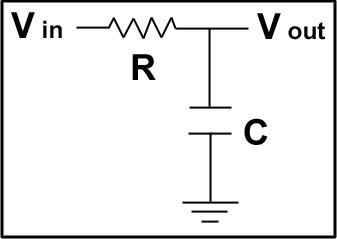

Reference Electrode Input - RC Low Pass Filter.

Figure 2. RC Low Pass Filter.

The effects become worse as the reference electrode impedance rises. Mansfeld, Lin, Chen, and Shih (1) have shown that EIS phase data can be severely distorted through this effect. They recommend use of a reference electrode combined with a capacitively coupled platinum wire to minimize these errors. See below for a further discussion of this combination

Capacitive Cells and Potentiostat Stability

High impedance reference electrodes also degrade potentiostat stability.

All potentiostats can become unstable when connected to capacitive cells. The capacitive cell adds phase shift to the potentiostat's already phase shifted feedback signal. The additional phase shift can convert the potentiostat's power amplifier into a power oscillator. A potentiostat is a specialized servo system, and a negative feedback mechanism adjusts the system’s output until the measured quantity is equal to the desired setting. The term negative feedback is used because a positive perturbation in the measured quantity causes changes in the system output to drive the measured quantity negative.

If the sign of the feedback ever becomes positive, perturbations in the measured quantity are magnified, not minimized. Positive feedback can cause wide, repeated swings in the system, known as oscillations. Often the oscillation swings all the way between the most positive and most negative system outputs. In most cases, the average value of these wide swings is not the same as the DC value the system would have without these oscillations. Phase shifts in the feedback signal can cause a change in the sign of the feedback. Negative feedback phase shifted by 180° becomes positive feedback. Unfortunately, almost all electrochemical cells are capacitive at high frequency.

Potentiostat oscillation is an AC phenomenon. However, it can affect both AC and DC measurements. Oscillation often causes excessive noise or sharp DC shifts seen on the system's graphical output. A potentiostat is often stable on less sensitive current ranges and unstable on more sensitive current ranges. This effect is induced by phase shifts in the cell voltage caused by the current measurement circuit. These phase shifts increase as current sensitivity increases.

The Reference 600+ has been tested for stability with cell capacitors between 10 pF and 0.1 F. In all but its fastest control-amplifier speed setting, it is stable on any capacitor in this range—as long as the impedance in the reference-electrode lead does not exceed 20 kΩ. With reference-electrode impedances greater than 20 kΩ, the Reference 600+ may oscillate. The RC filter formed by the reference-electrode impedance and the reference terminal’s input capacitance filters out the high-frequency feedback needed for potentiostat stability.

Longer cell cables make the problem worse by increasing the reference terminal's effective input capacitance.

Most waveforms applied to the cell are digital approximations to a linear waveform. There are steps in this waveform. Even when the system is stable (not oscillating), it may exhibit ringing whenever there is a voltage step applied to the cell. While this ringing is not a problem with slow DC measurements, it can interfere with faster measurements. The steps taken to eliminate potentiostat oscillation also help to minimize ringing.

Improving Potentiostat Stability

There are a number of things that you can do to improve an unstable or marginally stable potentiostat/cell/reference electrode system. This list is not in any particular order. Any or all of these steps may help.

Lower the Reference Electrode Impedance

Make sure that you don't have a clogged reference electrode junction. Avoid asbestos fiber reference electrodes and double junction electrodes. Avoid small diameter Luggin capillaries. If you do have a Luggin capillary, make sure that the capillaries' contents are as conductive as possible.

Slow Down the Potentiostat's Control Amplifier

The Gamry Instruments’ Reference 600+ has five control-amplifier speed settings, which can be selected in software. Slower settings are generally more stable.  Simple software changes allow user control of these settings. These changes are outlined in the changing potentiostat speed settings application note.

Increase the Potentiostat's I/E Stability Setting

Gamry's Reference 600+ includes three capacitors that can be connected in parallel with its I/E converter resistors. These capacitors are connected to relays that are controlled by software. Switching in these capacitors improves system stability by minimizing phase shifts caused by current measurement circuit.

Add a Capacitively Coupled Low Impedance Reference Element in Parallel with Your Existing Reference Electrode

Theic fast combination reference electrode is a platinum wire and a junction isolated SCE. See Figure 3. The capacitor insures that DC potential comes from the SCE and AC potential from the platinum wire. The capacitor value is generally determined by trial and error.

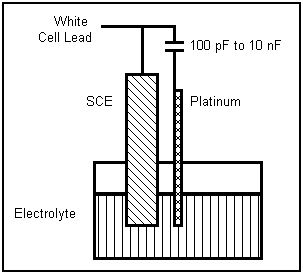

Fast Combination Reference Electrode

Figure 3. Fast Combination Reference Electrode.

Provide A High Frequency Shunt Around the Cell

A small capacitor between the counter and reference cell leads allows high frequency feedback to bypass the cell. See Figure 4. The capacitor value is generally determined by trial and error. One nanofarad is a good starting point.

In a sense, this is another form of an AC coupled low impedance reference electrode. The counter electrode is the low impedance electrode, eliminating the need for an additional electrode in the solution.

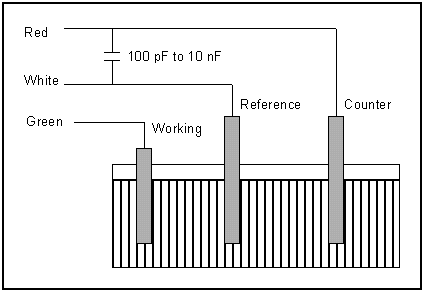

Reference Electrode Resistor Added for Stability

Figure 4. High Frequency Shunt.

Add Resistance to the Counter Electrode Lead

See Figure 5. This change lowers the effective gain bandwidth product of the control amplifier. As a rule of thumb, the resistor should be selected to give one volt of drop at the highest current expected during the experiment. For example, if you expect your highest current to be around 1 mA, you can add a 1 kΩ resistor.

lowers the effective gain bandwidth product of the control amplifier

Figure 5.  Resistor Added for Stability.


(1) F. Mansfeld, S. Lin, Y.C. Chen and H. Shih, "Minimization of High-Frequency Phase Shifts in Impedance Measurements", JES 135, 906 (1988)
