Overview

The MultEchem System combines up to 16 Gamry potentiostats into a multichannel system to provide the ultimate in value and flexibility to the electrochemist. Each channel of a MultEchem System has the same capabilities as a single research-grade instrument, but at a greatly discounted cost-per-channel—there is no sacrifice in performance to gain higher experimental throughput.

Gamry’s full line of application software is available for all MultEchem systems. Using the flexibility of the Gamry software, each channel can be run both independently and simultaneously. Any experiment can be run on any channel, regardless of which experiments are running on other channels.

MultEchem Systems can be configured with any combination of Series G or Reference Family instruments. Series G potentiostats are combined into a single industrial computer chassis, making for a compact, rack mount capable system. Reference Family instruments are connected to single USB capable computer which allows for more flexible positioning of the instruments.

Applications

MultEchem Systems are ideal for any application that benefits from higher throughput.

• Coatings Analysis
• Continuous Corrosion Monitoring
• Monitoring Electrode Arrays
• Sensor Arrays
• Combinatorial Testing
• Large Scale Supercapacitor and Battery Evaluation

Regardless of the application, a Gamry MultEchem System gives you the ability to independently and simultaneously control experiments across multiple electrochemical cells.

Configurations

MultEchem Series G

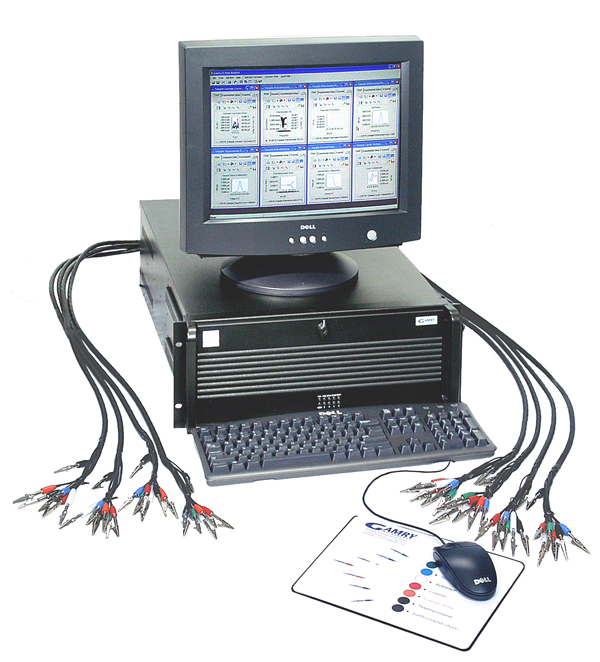

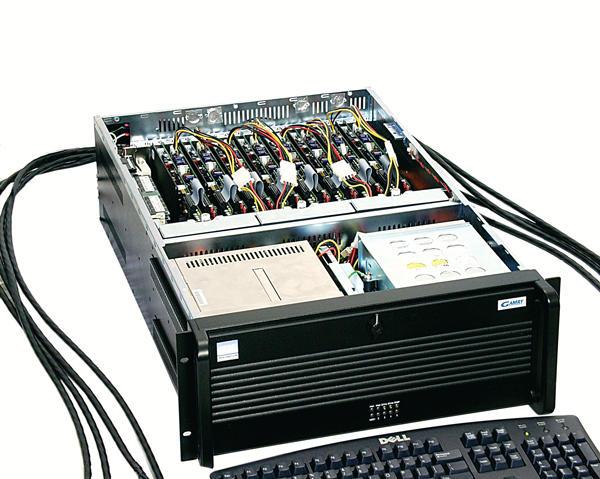

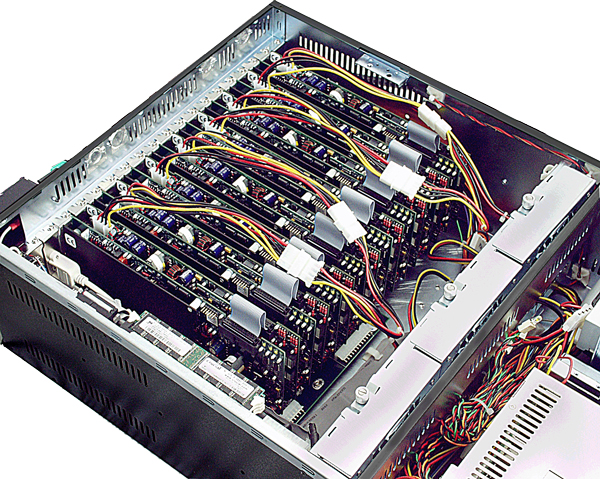

Up to 8 Series G 300/750 potentiostats can be combined in a single industrial computer chassis to make the ultimate multichannel instrument.

MultEchem Reference Family

Up to 16 Reference 600/3000 potentiostats can be connected to a single computer via a powered USB hub. A MultEchem System can be built into a single computer chassis using Gamry’s Series G 300/750 potentiostats, or it can be built from Gamry Reference Family potentiostats that work from a single computer. See below for information each configuration.

MultEchem Series G/Reference

A combination of up to 16 Series G and Reference Family potentiostats operating from a single computer. The Reference Family potentiostats provide portability and the ultimate low current performance while the Series G potentiostats provide additional testing channels at a very budget friendly price.

System Information

• MultEchem Systems utilizing 3 or more Series G Potentiostats require an industrial computer, available from Gamry.
• MultEchem Systems ship with a USB Dongle to authenticate the software license—instruments bundled with a MultEchem will only operate with the USB Dongle installed.
• All instruments and computers purchased in a MultEchem System are supported by Gamry’s 2-year factory service warranty.



•
•
•
