Measurement of Small Electrochemical Signals


Gamry PotentiostatsPotentiostats are often required to work near the limits of their measurement ability. The Gamry Instruments Reference 600 can resolve current changes as small as 1 femtoampère (10–15 A). To place this current in perspective, 1 fA represents the flow of about 6000 electrons per second!

Measurements of small currents place demands on the instrument, the cell, the cables, and the experimenter. Many of the techniques used in electrochemistry of larger currents must be modified when used to measure pA and fA currents. In many cases, the basic physics of the measurement must be considered.

This Application Note discusses the limiting factors controlling low-current measurements. The emphasis will be on EIS (Electrochemical Impedance Spectroscopy), a major application for low-current potentiostats.

Model of the Measurement System and its Physical Limitations

To get a feel for the physical limits implied by femtoampère measurements, consider the equivalent circuit shown in Figure 1. We are attempting to measure a cell impedance given by Zcell.

This model is valid for analysis purposes even when a real potentiostat’s circuit topology differs significantly.

In Figure 1:


= an ideal signal source


= the unknown cell impedance


= the measurement circuit’s current measurement resistance


= an unwanted resistance across the cell


= an unwanted capacitance across the cell


= the measurement circuit’s stray input capacitance


= the measurement circuit’s stray input resistance


= the measurement circuit’s input current

In the ideal current-measurement circuit, Rin is infinite while Cin and Iin are zero. All the cell current, Zcell, flows through Rm.

With an ideal cell and voltage source, Rshunt is infinite and Cshunt is zero. All the current flowing into the current measurement circuit is due to Zcell.

The voltage developed across Rm is measured by the meter as Vm. Given the idealities discussed above, you can use Kirchoff's and Ohm’s laws to calculate Zcell:

The voltage developed across Rm is measured by the meter as Vm.

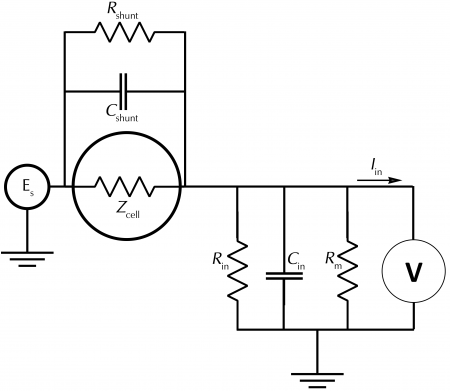

Equivalent measurement circuit.
Figure 1. Equivalent measurement circuit.

Unfortunately technology limits high-impedance measurements because:

  • Current measurement circuits always have non-zero input capacitance, i.e., Cin > 0,
  • Infinite Rin cannot be achieved with real circuits and materials,

  • Amplifiers used in the meter have input currents, i.e., Iin > 0,

  • The cell and the potentiostat create both a non-zero Cshunt and a finite Rshunt.

Johnson Noise in Zcell

Johnson noise across a resistor represents a fundamental physical limitation. Resistors, regardless of composition, demonstrate a minimum noise for both current and voltage, per the following equation.

Johnson noise across a resistor represents a fundamental physical limitation.



= Boltzman's constant, 1.38 × 10–23 J/K


= temperature in K


= noise bandwidth in Hz


= resistance in Ω

For purposes of approximation, the noise bandwidth, dF, is equal to the measurement frequency. Assume a 1012 Ω resistor as Zcell. At 300 K and a measurement frequency of 1 Hz this gives a voltage noise of 129 µV rms. The peak-to-peak noise is about five times the rms noise. Under these conditions, you cannot make a voltage measurement of ±10 mV across Zcell without an error of up to ±3%. Fortunately, an AC measurement can reduce the bandwidth by integrating the measured value at the expense of additional measurement time. With a noise bandwidth of 1 mHz, the voltage noise falls to 4 µV rms.

Current noise on the same resistor under the same conditions is 0.129 fA. To place this number in perspective, a ±10 mV signal across this same resistor will generate a current of ±10 fA, or again an error of up to ±3%. Again, reducing the bandwidth helps. At a noise bandwidth of 1 mHz, the current noise falls to 0.004 fA.

With Es at 10 mV, an EIS system that measures 1012 Ω at 1mHz is about three decades away from the Johnson-noise limits. At 0.1 Hz, the system is close enough to the Johnson noise limits to make accurate measurements impossible. Between these limits, readings get progressively less accurate as the frequency increases.

In practice, EIS measurements usually cannot be made at high-enough frequencies that Johnson noise is the dominant noise source. If Johnson noise is a problem, averaging reduces the noise-bandwidth, thereby reducing the noise at a cost of lengthening the experiment.

Finite Input Capacitance

Cin in Figure 1 represents unavoidable capacitances that always arise in real circuits. Cin shunts Rm, draining off higher-frequency signals, limiting the bandwidth that can be achieved for a given value of Rm. This calculation shows at which frequencies the effect becomes significant. The frequency limit of a current measurement (defined by the frequency where the phase-error hits 45°) can be calculated from:

eq3 Decreasing Rm increases frequency

Decreasing Rm increases this frequency. However, large Rm values are desirable to minimize voltage drift and voltage noise.

A reasonable value for Cin in a practical, computer-controllable low-current measurement circuit is 5 pF. For a 30 pA full-scale current range, a practical estimate for Rm is 1010 Ω. We substitute these values into Eq. 3:

In general, one should stay two decades below fRC to keep phase-shift below one

In general, one should stay two decades below fRC to keep phase-shift below one degree. The uncorrected upper-frequency limit on a 30 pA range is therefore around 30 mHz.

You can measure higher frequencies using the higher current ranges (i.e., lower impedance ranges) but this reduces the total available signal below the resolution limits of the “voltmeter”. This then forms one basis of statement that high-frequency and high-impedance measurements are mutually exclusive.

You can also use software-correction of the measured response to improve the useable bandwidth, but not by more than an order of magnitude in frequency.

Leakage Currents and Input Impedance

In Figure 1, both Rin and Iin affect the accuracy of current measurements. The magnitude error caused by Rin is calculated by

The magnitude error caused by Rin is calculated

For an Rm of 1010 Ω, an error < 1% demands that Rin must be > 1012 Ω. Printed-circuit-board leakage, relay leakage, and measurement-device characteristics lower Rin below the desired value of infinity.

A similar problem is the finite input leakage current (Iin) into the voltage-measuring circuit. It can be leakage directly into the input of the voltage meter, or leakage from a voltage source (such as a power supply) through an insulation resistance into the input. If an insulator connected to the input has a 1012 Ω resistance between +15 volts and the input, the leakage current is 15 pA. Fortunately, most sources of leakage current are DC and thus they disappear in impedance measurements. As a rule of thumb, the DC leakage should not exceed the measured signal by more than a factor of 10.

The best commercially available input amplifier has input current of around 50 fA. Other circuit components may also contribute leakage currents. You therefore cannot make absolute current measurements of low fA currents. In practice, the input current is approximately constant, so current differences or AC-current levels of a few fA can be measured.

Voltage Noise and DC Measurements

Often the current signal measured by a potentiostat shows noise that is not caused by the current measurement circuit. This is especially true for DC measurements. The cause of the current noise is noise in the voltage applied to the cell.

Assume that you have a working electrode with a capacitance of 1 mF. This could represent a passive layer on a metal specimen. The impedance of this electrode, assuming ideal capacitive behavior, is given by

The impedance of this electrode, assuming ideal capacitive behavior, is given

At 60 Hz, the impedance value is about 2.5 kΩ.

Apply an ideal DC potential across this ideal capacitor and you get no DC current.

Unfortunately, all potentiostats have noise in the applied voltage. This noise comes from the instrument itself and from external sources. In many cases, the predominant noise frequency is the AC power-line (mains) frequency.

Assume a reasonable noise voltage, Vn, of 10 µV. Further, assume that this noise voltage is at the US power-line frequency of 60 Hz. It will create a current across the cell capacitance:

create a current across the cell capacitance

This rather large noise current prevents accurate DC current measurement in the pA range.

In an EIS measurement, you apply an AC excitation voltage that is much bigger than the typical noise voltage, so this is not a factor.

Shunt Resistance and Capacitance

Non-ideal shunt resistance and capacitance arise in both the cell and the potentiostat. Both can cause significant measurement errors.

Parallel metal surfaces form a capacitor. The capacitance rises as the area of either metal increases and as the separation distance between the metals decreases.

Wire and electrode placement have a large effect on shunt capacitance. If the clip leads connecting to the working and reference electrodes are close together, they can form a significant shunt capacitor. Values of 10 pF are common. This shunt capacitance cannot be distinguished from “real” capacitance in the cell. If you are measuring a paint film with a 30 pF capacitance, 10 pF of shunt capacitance is a very significant error.

Shunt resistance in the cell arises because of imperfect insulators. No material is a perfect insulator (one with infinite resistance). Even Teflon®, which is one of the best insulators known, has a bulk resistivity of about 1014 Ω. Worse yet, surface contamination often lowers the effective resistivity of good insulators. Water films can be a real problem, especially on glass.

Shunt capacitance and resistance also occur in the potentiostat itself. In most cases, the cell’s shunt resistance and capacitance errors are larger than those from the potentiostat.
