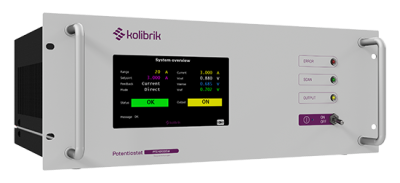

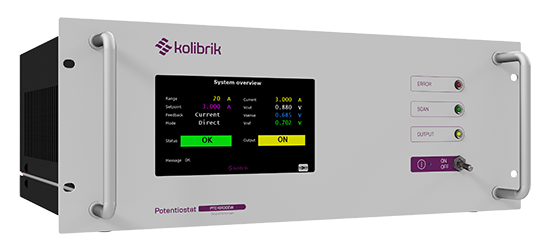

PTC-10100EW

High-Power EIS Analysis

The instrument enables programmable sequencing of all available methods and Python scripting.

System Highlights

Optimized for High-Power Lab
From ±20 A up to ±100 A, the PTC-10100EW gives you full control over your current and voltage range. Choose exactly what your application needs — compliance voltage options include ±5 V, -5/+10 V, and ±10 V. All models support true 4-quadrant operation.

  • Integrated TCP Server
  • NI LabVIEW drivers
  • Python library with examples
  • Seamless external control & scripting
  • Designed for integration into custom experiments and automated test setups

Specifications

SYSTEM
Potentiostat Yes
Galvanostat Yes
Power supply 110..240V AC / 50..60 Hz

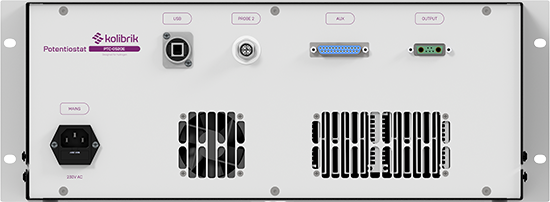

Dimensions 19“ rack cabinet, 4U height
Cooling Water
Protection rating IP20
Electrometer Input voltage range -10 V +10 V
Compliance / Output voltage

-2V +10
Compliance / Output current -100A +100A

Current Ranges 4 current ranges (500 mA, 5 A, 20 A, 100 A)
Sampling

24-bit ADCs, 1 ksps internal,
50 sps filtered sampling
14-bit ADCs,
up to 20 Msps for EIS measurements
Measurement resolution

0.001 % of selected range for
≤ 1 ksps sampling
Accuracy Voltage ≤ 0.1 % of range
+ 0.1 % of reading
Current ≤ 0.1 % of range
+ 0.5 % of reading
Acquisition methods

Constant V, I, Open circuit, Manual control, Linear Sweeps,
Cyclic Voltammetry, Cyclic Amperometry,
Electrochemical Impedance Spectroscopy (EIS),
Chronoamperometry, Chronopotentiometry,
Double Step Chronoamperometry, Double Step Chronopotentiometry,
Current Interrupt, Square Pulse Potentiometry, Square Pulse Amperometry,
Battery Charge and Discharge,
Custom experiment sequences, Python scripting
EIS frequency 1 mHz .. 100 kHz
EIS amplitude 1 .. 1000 mV, up to 50 A for < 1 kHz
PC Connection USB 2.0
Software

Software for MS Windows, TCP Server, NI LabVIEW drivers,
Python library and examples
