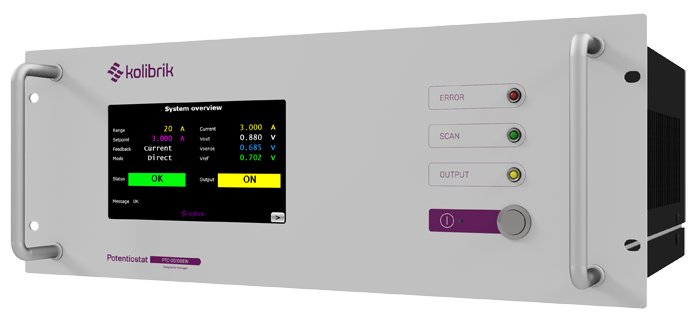

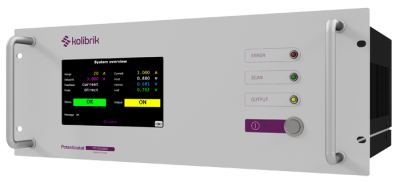

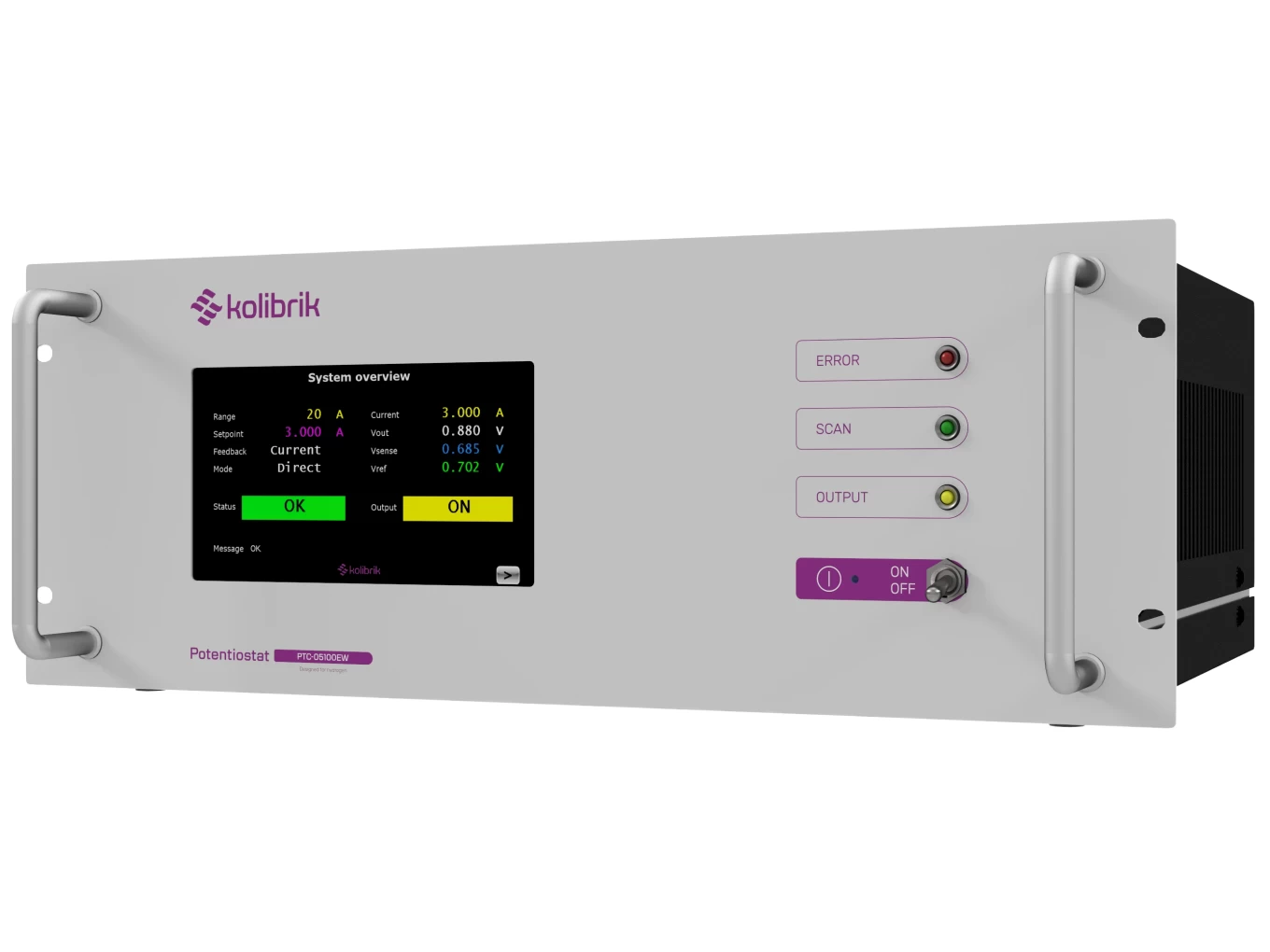

PTC-05100EW

High-power H2FC Kolibrik potentiostat

Potentiostats are designed for EIS analysis of single fuel cells, electrolyzers, or batteries.

Watch Product Video

System Highlights Downloads Specifications

Kolibrik Potentiostat Key Parameters

Potentiostat/Galvanostat	±5 V, ±100 A
Max internal power dissipation	1000W
4 current ranges	500 mA, 5 A, 20 A, 100 A
Impedance spectroscopy	1 mHz .. 100 kHz
Cooling	Water

Features

Potentiostat / Galvanostat up to ±100 A (4-quadrant)
Current ranges up to ±100 A (4 ranges)
Impedance spectroscopy 1 mHz ... 100 kHz
Cyclic Voltametry, Chronoamperometry and other standard electrochemical methods
Software with external control via TCP/IP, LabView drivers on request
The PTC-05100EW requires an external, third-party, water-cooling system to dissipate the heat generated during operation. Please contact us for more information on recommended water-cooling solutions.

SYSTEM
Potentiostat	Yes
Galvanostat	Yes
Power supply	110..240V AC / 50..60 Hz
Dimensions	19“ rack cabinet, 4U height
Cooling	Water
Protection rating	IP20
Electrometer Input voltage range	-10 V +10 V
Compliance / Output voltage	-5V +5
Compliance / Output current	-100A +100A

Current Ranges	4 current ranges (500 mA, 5 A, 20 A, 100 A)
Sampling	24-bit ADCs, 1 ksps internal, 50 sps filtered sampling 14-bit ADCs, up to 20 Msps for EIS measurements
Measurement resolution	0.001 % of selected range for ≤ 1 ksps sampling

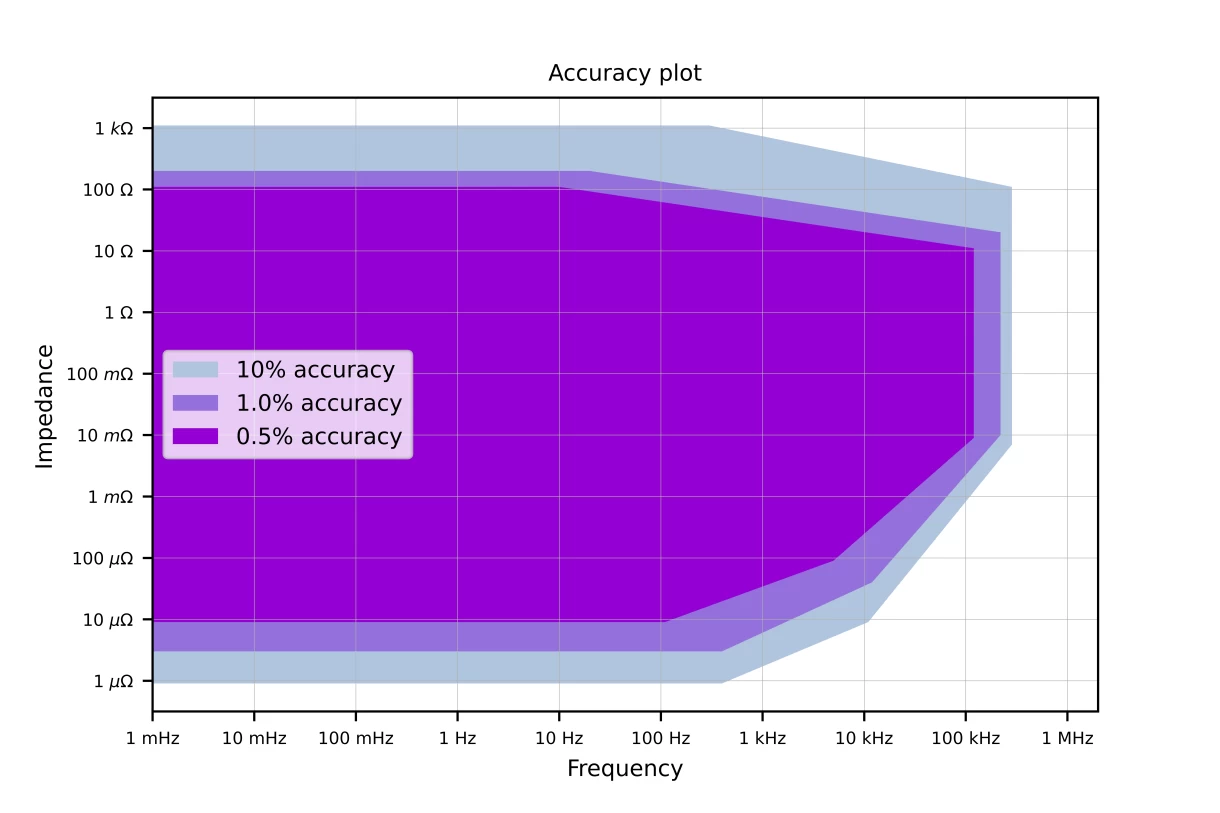

Accuracy	Voltage ≤ 0.1 % of range + 0.1 % of reading Current ≤ 0.1 % of range + 0.5 % of reading
Acquisition methods	Constant V, I, Open circuit, Manual control, Linear Sweeps, Cyclic Voltammetry, Cyclic Amperometry, Electrochemical Impedance Spectroscopy (EIS), Chronoamperometry, Chronopotentiometry, Double Step Chronoamperometry, Double Step Chronopotentiometry, Current Interrupt, Square Pulse Potentiometry, Square Pulse Amperometry, Battery Charge and Discharge, Custom experiment sequences, Python scripting
EIS frequency	1 mHz .. 100 kHz
EIS amplitude	1 .. 1000 mV, up to 50 A for < 1 kHz
PC Connection	USB 2.0
Software	Software for MS Windows, TCP Server, NI LabVIEW drivers, Python library and examples
