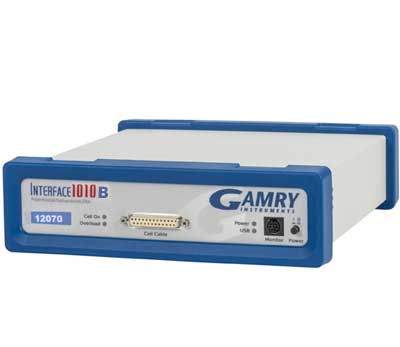

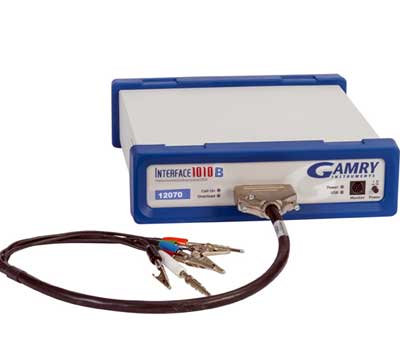

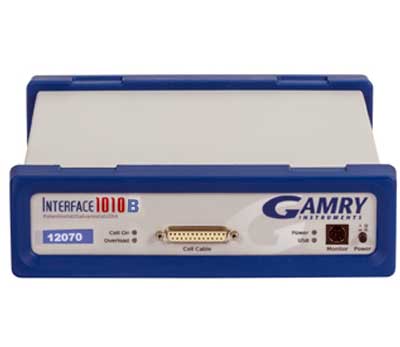

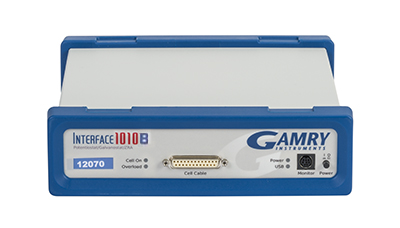

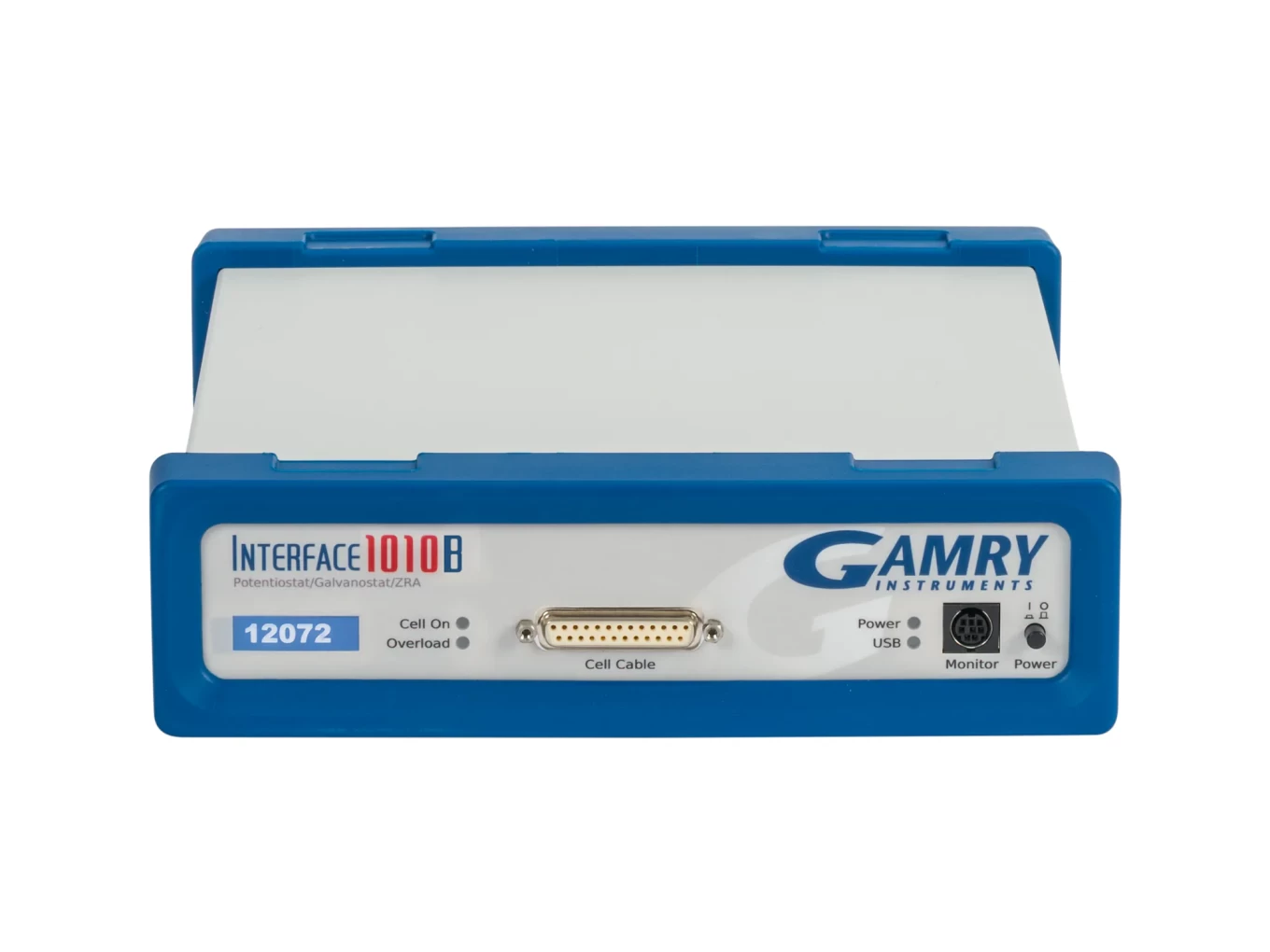

The Interface 1010B™ is a general purpose potentiostat that gives you the ability to run basic physical and electroanalytical techniques such as cyclic voltammetry, chronoamperometry, chronopotentiometry, pulse voltammetry and square wave voltammetry.
Key features include:
For techniques including:
Rating: 5.0
Organization: Husky Injection Modling Systems
Application Area: Corrosion of stainless steel
"This piece of equipment is very easy to use. There are color codes which clarify the installation. I specifically like how simple it is to calibrate the equipment. The voltage..."
If you're looking for a general-purpose potentiostat for cyclic voltammetry or similar studies for basic research such as determining redox potentials, reaction mechanisms, diffusion coefficients, rate constants and electrochemical surface area. You can also run electrochemical plating and electrodeposition experiments or experiments for determining concentrations of trace analytes in solution. In addition to the above capabilities you get an introductory software development toolkit that gives you the ability to develop your own program or interface to other instruments.
The Interface 1010 also comes in a more advanced model, the Interface 1010E. The 1010E provides all of the capabilities of the Interface 1010B and also includes electrochemical impedance spectroscopy capabilities.
The Interface 1010B can be upgraded to the more advanced system with an infield upgrade. You can get a great introductory instrument that can grow in capabilities with the needs of your lab. The Interface 1010B can be upgraded to an Interface 1010E. Contact us for more information on upgrading.
Below are additional details regarding the capabilities of the instrument. Each bullet point contains a list of the type of techniques available for the instrument to run.
Other Details
Interface 1010B Part #992-00127 (992-127)
SYSTEM |
|
| Potentiostat | Yes |
| Galvanostat | Yes |
| Zero Resistance Ammeter | Yes |
| Floating (Isolated from Earth Ground) | Yes |
| Cell Connections | 2, 3, or 4 |
| Maximum Current | ±1 A |
| Current Ranges | 9 (10 nA - 1 A) |
| Current Ranges (including internal gain) |
11 |
| Minimum Current Resolution | 3.3 fA |
| Maximum Applied Potential | ±12 V |
| Rise Time | <1 μs |
| Minimum Time Base | 10 μs |
| Noise and Ripple | <20 μV rms |
| Weight | 2.4 kg |
| Dimensions | 24 (W) x 6 (H) x 27 (D) 27 cm |
CONTROL AMPLIFIER |
|
| Compliance Voltage | ±20 V (@ 1A) |
| Output Current | >±1 A |
| Speed Settings | 5 |
| Unity Gain Bandwidth | 980, 260, 40, 4, 0.4 kHz |
EIS MEASUREMENT |
|
| Frequency Range | 10 μHz - 20 kHz |
| Impedance Accuracy | 99% |
| Maximum AC Amplitude | 2.33 V |
| Minimum AC Amplitude | 50 μV |
ELECTROMETER |
|
| Input Impedance | >1012 Ω |
| Input Current (typical) | <20 pA |
| Bandwidth | >10 MHz |
| CMRR | >80 dB (10 kHz) >60 dB (1 MHz) |
POTENTIAL |
|
| Applied Accuracy | ±1 mV ±0.2% of setting |
| Applied Resolution | 200 μV, 50 μV, 12.5 μV/bit |
| Measured Accuracy | ±1 mV ±0.3% of reading |
| Measured Resolution | 1 μV, 10 μV, 100 μV, 400 μV/bit |
CURRENT |
|
| Applied Accuracy | ±5 pA ±0.3% of range |
| Applied Resolution | 0.0033% full-scale/bit |
MEASURED CURRENT |
|
| Measured Accuracy | ±5 pA ±0.3% of range |
| Measured Resolution | 0.0033% full-scale/bit |
| Bandwidth | >10 MHz (1A - 100 μA) >1.5 MHz (10 μA) >0.15 MHz (1 μA) |
