Overview

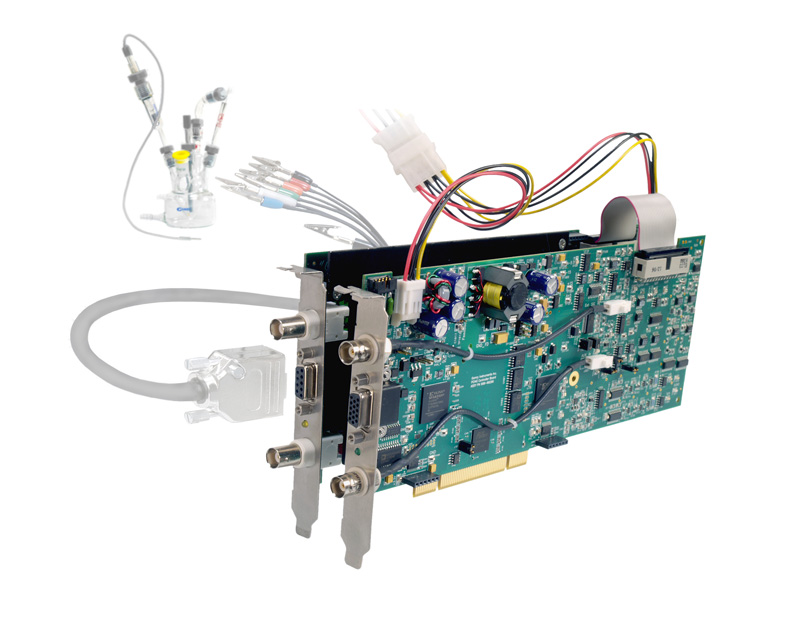

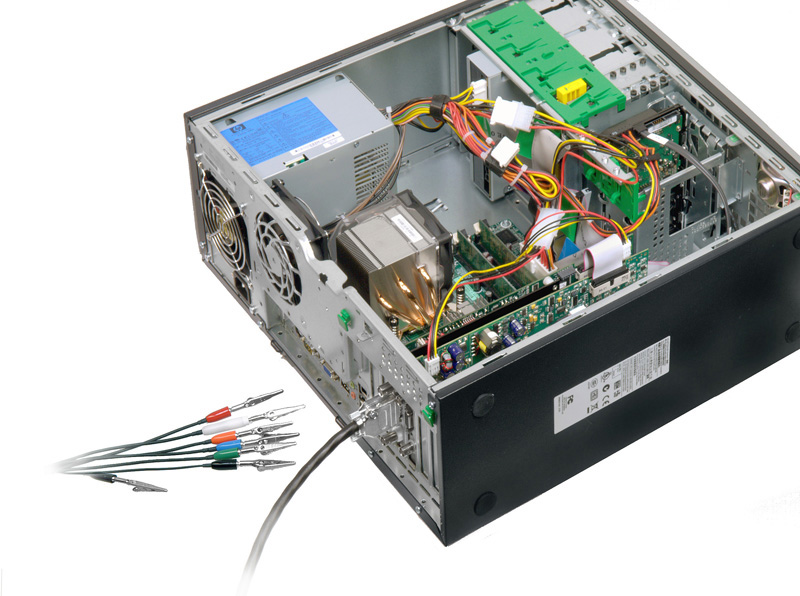

The Series G Potentiostat/Galvanostat/ZRA is a high-precision, research-grade electrochemical instrument that is designed to be installed inside a desktop computer. The ultra-compact design is the result of the electronic advances of the last 15 years, such as surface mount technology. It is available in a 300mA and 750mA version to work in many applications. On-board electronics allow EIS scans from 10 µHz to 300 kHz without the need for an external FRA or lock-in amplifier. Extensive voltage and current channel filtering allows quiet measurements in very noisy environments. 16-bit D/A and A/D converters, along with four terminal current and voltage measurements, provide accurate results down to 1 µV resolution.

Applications

• Corrosion Measurement
• Physical Electrochemistry
• Electrochemical Noise
• Sensor Development

Standard Features

• Isolation
  • Floating Instrument - use the Series G with autoclaves, mechanical stress apparatus, or pipeline probes.
• Built-In EIS
  • On-board DDS to perform EIS from 10µHz to 300kHz. See Accuracy Contour Plots below.
• Current Interrupt and Positive Feedback iR Compensation
  • Gamry potentiostats and their controlling software use control loop algorithms to accurately measure and correct for uncompensated resistance.
• Auxiliary I/O
  • Control additional equipment via additional I/O interfaces: external signal input, analog voltage output, analog current output, auxiliary A/D input, and miscellaneous I/O connector.
• Multiple Potentiostat Capability
  • Up to eight Series G 300/750 Potentiostats can be installed in one computer (requires industrial computer).

Warranty

Protected by 2-year factory service warranty.

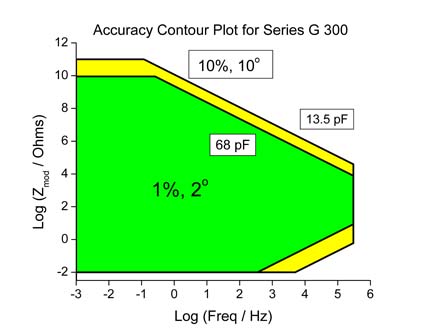

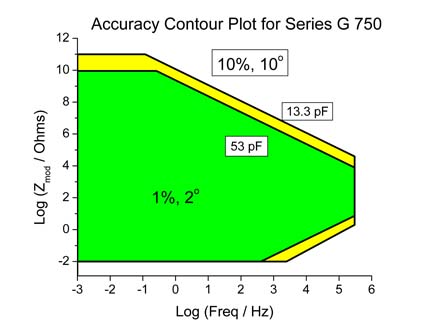

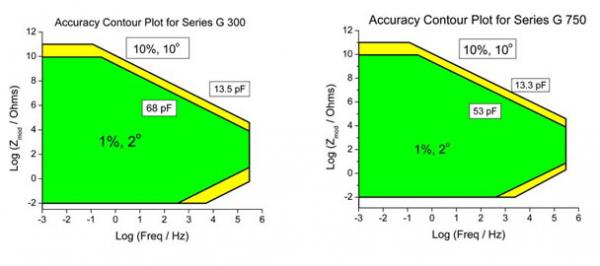

Accuracy Contour Plot

The Accuracy Contour Plot provides a detailed look at the performance you can expect from your instrument in real-world situations. The results include the cell cable.

Options

The Series G is available in either the 300mA (20V) or 750mA (12V) versions. To use with a laptop or other portable computer, the Series G can be utilized with an external expansion chassis (eStation System).

System Information

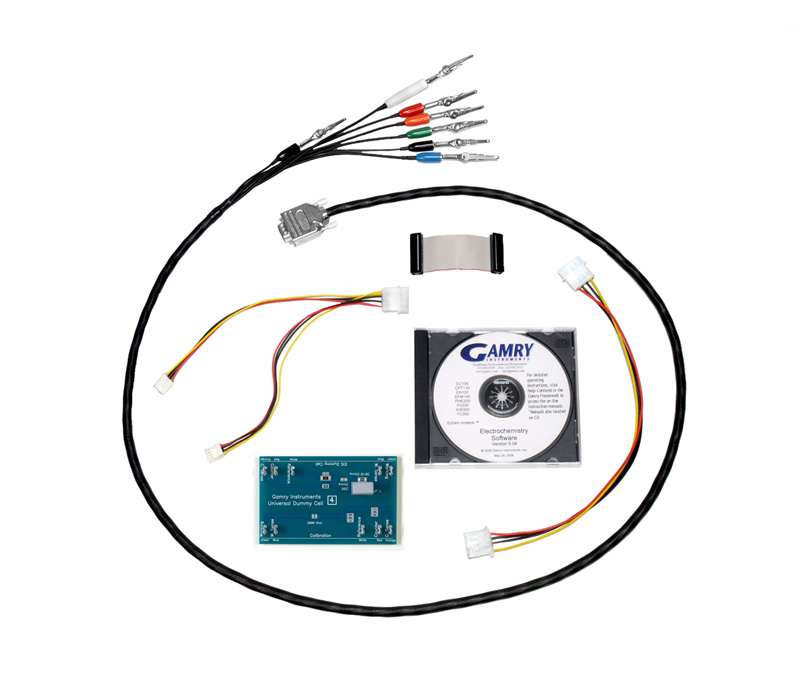

The Series G 300/750™ requires electrochemical software for specific electrochemical applications. The Series G 300/750 is shipped with the Gamry Framework™, Gamry Echem Analyst, a Hardware Operator's Manual, a Quick-Start Guide, a Universal Dummy Cell 4, one standard cell cable, and a Gamry Mouse Pad. Special cables, cells and other accessories are available at extra cost.

The Series G 300/750 is protected by a 2-year factory service warranty, has been tested and approved for CE Certification, and is RoHS compliant.

System Requirements

• Two 25 cm (10 inch) PCI Slots for Each Potentiostat
• Microsoft® Windows™ XP SP3/Vista/7 (32-bit or 64-bit)



	SERIES G 300/750
Potentiostat	YES
Galvanostat	YES
Zero Resistance Ammeter	YES
Cell Connections	2, 3, or 4
Floating (Isolated from Earth)	YES
WEIGHT	1 kg
DIMENSIONS	2 - 10 x 25 cm PCI Printed Circuit Boards
SYSTEM
Max Current	±300/750 ma
Current Ranges	9 (3nA-300mA / 7.5nA-750mA)
Current Ranges (w/Internal Gain applied)	11 (30pA-300mA / 75pA-750mA)
Min Voltage Resolution	1 μV
Min Current Resolution	1 fA / 2.5 fA
Max Applied Potential	±11 V / ±8 V
Rise Time	<2 μs
Noise and Ripple	<20 μV rms
Noise and Ripple (typical)	<3 μV rms
Min Time Base	50 μs
Max Time Base	600 s
Min Potential Step	12.5 μV
Analog/Digital Converter	16 bit
Max Data Points Per Experiment	262,143
EIS MEASUREMENT
Frequency Range	10 μHz - 300 kHz
EIS Accuracy	See Accuracy Contour Plot
Max AC Amplitude	3600 mV rms
Min AC Amplitude	55 μV rms
CONTROL AMP
Compliance Voltage	>±20 V / >±12 V
Output Current	>± 300 mA / >± 750 mA
Speed Settings	4
Unity Gain Bandwidth	200, 100, 40, 6 kHz
ELECTROMETER
Input Impedance	>1012 Ω
Input Current	<10 pA
Input Current (typical)	<5 pA
Bandwidth (-3dB) (typical)	>4 MHz
Common Mode Rejection Ratio	>80 dB (3 Hz) >60 dB (100 kHz)
APPLIED POTENTIAL
Accuracy	±2 mV ±0.2% of setting
Accuracy (typical)	±375 μV ±0.05% of reading
Resolution	12.5 μV, 50 μV, 200 μV/bit
Drift	<30μV/°C
Potential Scan Range	±0.4 V, ±1.6 V, ±6.4 V
MEASURED POTENTIAL
Accuracy	±1 mV ±0.3% of reading
Accuracy (typical)	±350 μV ±0.03% of reading
Full-Scale Ranges	30 V, 3 V, 300 mV, 30 mV
Resolution	1 mV, 100 μV, 10 μV, 1 μV/bit
Offset Range	±12 V
APPLIED CURRENT
Accuracy	±10 pA ±0.3% of range
Accuracy (typical)	±3 pA ±0.08% of range
Resolution	0.0033% full-scale/bit
MEASURED CURRENT
Accuracy	±50 pA ±0.3% of range
Accuracy (typical)	±8 pA ±0.08% of range
Resolution	0.0033% full-scale/bit
Bandwidth (-3 dB) NOTE: Bandwidth is current           range dependent.	> 500 kHz (300/750mA-300/750μA) > 100 kHz (30/75 μA) > 10 Hz (3/7.5 nA)
Stability Settings	3
Post Offset Gain	0.1, 1, 10, 100
Offset Range	±2X full-scale
iR COMPENSATION
Mode	Current Interrupt and Positive Feedback
Min Interrupt Time	30 μs
Max Interrupt Time	64 s
AUXILIARY A/D INPUT
Range	±3 V
Resolution	0.1 mV
Input Impedance	>25 kΩ
AUXILIARY D/A OUTPUT
Range	±5 V or 0-10 V
Resolution	2.5 mV

•
•
•
•
•
