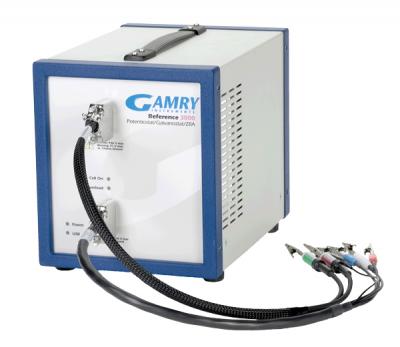

Reference 3000 with Cables Front2 TransparentBG2

Reference 3000

The Reference 3000 is a high-performance potentiostat/galvanostat/ZRA recommended for battery, capacitor, or fuel cell development, as well as general electrochemical measurements requiring higher currents.

System Highlights

Overview

The Reference 3000 is a high-current, high-performance potentiostat well suited for researchers studying batteries, fuel cells or supercapacitors.  It is also well suited for general physical electrochemistry experiments requiring high voltages and high currents. For very high current applications, the Reference 3000 can be interfaced with our Reference 30K Booster.

Electrochemical Impedance Spectroscopy

The Reference 30000 is fully equipped to perform electrochemical impedance spectroscopy up to 1 MHz.  The Accuracy Contour Plot below provides a detailed look at the performance you can expect from your instrument in real-world situations. The results include the cell cable.

Reference3000 Accuracy Contour Plot

Options

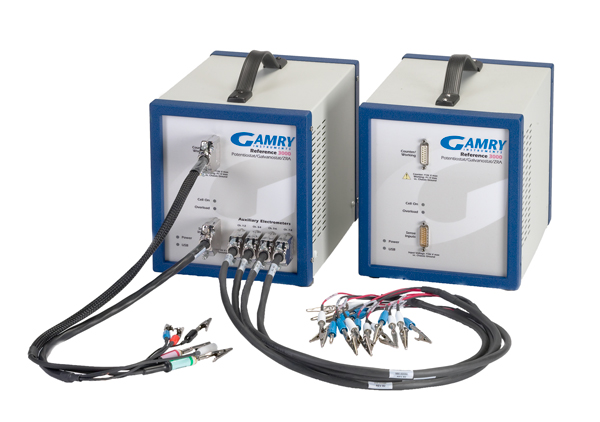

Auxiliary Electrometer
The auxiliary electrometer is a factory installed option that adds an array of eight differential voltage inputs. Each of the eight channels can measure a ± 5 volt signal anywhere over the Reference 3000’s entire compliance voltage range. Impedance measurements up to 100 kHz can also be performed using the auxiliary electrometer.

Extended Cable Lengths
Extended length cell cables (1.5 and 3 meter) are also available for your convenience.
Auxiliary Electrometer Cables: The standard Auxiliary Electrometer cables are 90 cm. Extended length cables (1.5 and 3 meter) are available.

More details

Below are additional details regarding the capabilities of the Reference 3000 potentiostat. Each bullet point contains a list of the type of techniques available for the instrument to run.

  • Physical Electrochemistry  - Techniques such as cyclic voltammetry, chronoamperometry, and chronopotentiometry and derivatives of these techniques.
  • Pulse Voltammetry - Techniques such as pulse voltammetry, square wave voltammetry, and associated stripping techniques such as anodic stripping voltammetry.
  • DC Corrosion - Run standard DC corrosion tests such as polarization resistance, potentiodynamic, cyclic polarization, and galvanic corrosion in addition to a number of others.
  • Electrochemical Energy - Test single-cells and stacks of various batteries, fuel cells or supercapacitors. Includes charge, discharge, cyclic charge-discharge techniques, potentiostatic, galvanostatic, self-discharge, leakage rate, and read cell voltage.
  • Electrochemical Signal Analyzer -  Designed specifically for the acquisition and analysis of time-dependent electrochemical noise signals. Cell voltage and current are continuously monitored at rates from 0.1 Hz to 1 kHz. A full featured set of analysis tools provides powerful analysis features such as statistical analysis, detrending, impedance spectra, and histogram analysis.
  • Electrochemical Frequency Modulation - A non-destructive corrosion rate measurement technique. It allows for measurement of the corrosion rate without prior knowledge of the Tafel constants. In addition, the technique determines the Tafel constants and provides 2 internal validity checks.
  • Critical Pitting Temperature - controls a Gamry Potentiostat, TDC4 Temperature Controller, and associated accessories to automatically measure the Critical Pitting Temperature of a material.
  • Electrochemical Noise - A more general form of electrochemical noise testing. It is also an ECM8 Multiplexer compatible electrochemical noise software package.
  • Electrochemical Impedance Spectroscopy - includes experimental scripts for potentiostatic, galvanostatic and hybrid impedance spectroscopy experiments in addition to single frequency techniques like Mott-Schottky. We also have our unique power-leveling multisine technique that improves signal-to-noise across the spectrum. On the analysis side, it provides tools for fitting spectra to equivalent circuit models, Kramers-Kronig transform for data validation and a graphical model editor. Our software even includes a script for EIS simulation.
  • eChemAC - Includes full capabilities of eChemDC Toolkit plus allows electrochemical impedance spectroscopy (EIS) and EFM experiments.

Other features

  • 2, 3, and 4 electrode measurements
  • Electrical Isolation
    • Floating instrument: use with autoclaves, mechanical stress apparatus, or pipeline probes.
  • Built-In EIS
    • On-board DDS to perform EIS from 10 µHz to 1 MHz.
  • DSP (Digital Signal Processing) Mode
    • Oversamples for improved signal-to-noise and accurate capacitance measurements.
  • Current Interrupt and Positive Feedback iR Compensation
    • Gamry potentiostats and their controlling software use control loop algorithms to accurately measure and correct for uncompensated resistance.

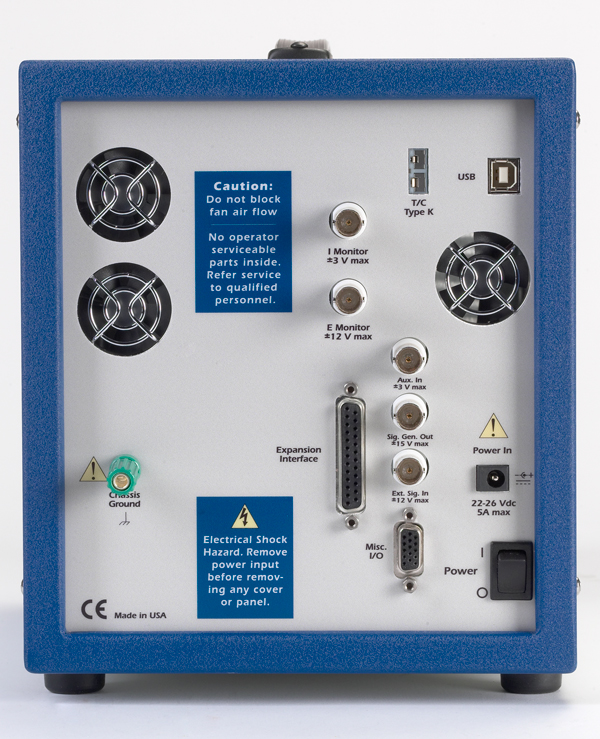

  • Auxiliary I/O
    • Control additional equipment via additional I/O interfaces: external signal input, analog voltage output, analog current output, auxiliary A/D input, and digital I/O connector.
  • Warranty
    • Protected by 2-year factory service warranty.





Images

Manuals

Specifications

SYSTEM

Potentiostat Yes
Galvanostat Yes
Zero Resistance Ammeter Yes
Floating (Isolated from Earth Ground)  Yes
Cell Connections 2, 3, 4 5 or 21+
Maximum Current ±3 A or ±1.5 A @ 32V
Current Ranges 11 (300 pA – 3 A)
Current Ranges
(including internal gain)
13
Minimum Current Resolution 92 aA
Maximum Applied Potential ±32 V
Rise Time <250 ns
Minimum Time Base 3.333 μs
Noise and Ripple (typical) <2 μV rms
Weight 26 kg
Dimensions 20 (W) x 23 (H) x 30 (D) cm


CONTROL AMPLIFIER

Compliance Voltage ±32 V
Output Current >±3 A
Speed Settings 5
Unity Gain Bandwidth 1100, 330, 50, 5.0, 0.5 kHz


EIS MEASUREMENT

EIS 10 μHz - 1 MHz
EIS Accuracy See Accuracy
Contour Plot
Voltage AC Amplitude 3 V maximum
Current AC Amplitude 3 A maximum


ELECTROMETER

Input Impedance >1014 Ω || <0.2 pF
Input Current (typical) <6 pA
Bandwidth >15 MHz at - 3 dB
CMRR >80 dB (100 kHz)
>60 dB (1 MHz)


POTENTIAL

Applied Accuracy    ±1 mV ±0.2% of setting
Applied Resolution 12.5 μV, 50 μV, 200 μV/bit
Measured Accuracy ±1 mV ±0.2% of reading
Measured Resolution High-Resolution Electrometer:
400 μV, 100 μV, 10 μV, 1 μV/bit
High Voltage Electrometer:
1.6 mV, 400 μV, 40 μV, 4 μV/bit


CURRENT

Applied/Measured Accuracy ±5 pA ± 0.05% of range
±0.2% of value (3 A - 3 nA)
or 0.5% of value (300 pA)
Applied/Measured Resolution 0.0033% full-scale/bit
Bandwidth >10 MHz (3 A - 3 mA)
>0.15 MHz (30 μA)
