Potentiostatic Mode ECN Setup

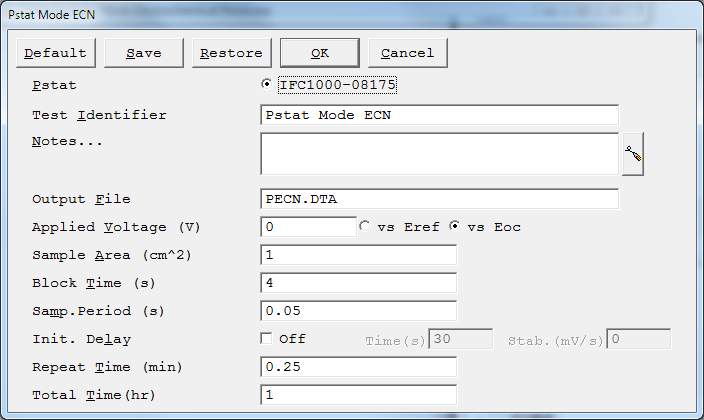

Here is the dialog box for the Potentiostatic Mode ECN Test.

All of the Setup parameters for the potentiostatic Mode ECN test except Applied Voltage are described in the Common Setup Parameters.

Applied Voltage

The potential applied to the working electrode during the noise measurements. Enter the voltage either as a voltage versus the reference electrode, or as a voltage referenced to the open-circuit voltage. The value is entered in volts. The allowed range is ±8 V with a resolution of 1/8 mV.
